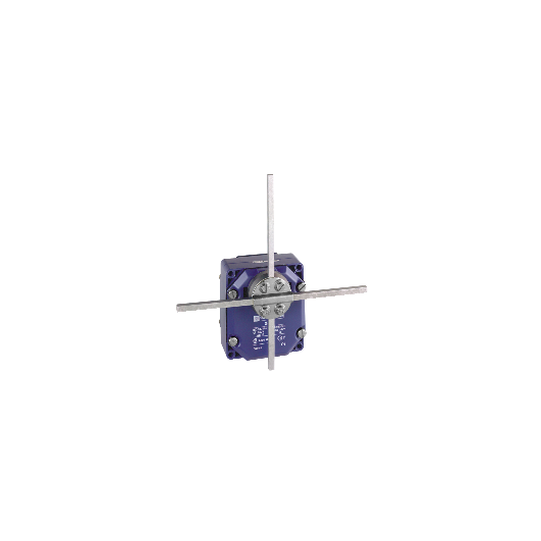

Télémécanique - limit switch XCR - metal stay put T rods lever square rod 6 mm - 2X(1NC+NO) - XCRF17
SKU : XCRF17
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - limit switch XCR - metal stay put T rods lever square rod 6 mm - 2X(1NC+NO) - XCRF17
DESCRIPTION
| Range of product: | OsiSense XC |
|---|---|
| Series name: | Special format |
| Product or component type: | Limit switch |
| Product specific application: | For hoisting and mechanical handling applications |
| Device short name: | XCR |
| Sensor design: | - |
| Body type: | Fixed |
| Head type: | Rotary head |
| Material: | Metal |
| Fixing mode: | By the body |
| Movement of operating head: | Rotary |
| Type of operator: | Stay put crossed rods lever metal square rod 6 mm |
| Type of approach: | Lateral approach, 2 directions |
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Number of poles: | 4 |
| Contacts type and composition: | 2 x (1 NC + 1 NO) |
| Contact operation: | Snap action |
| Contact block per direction [control circuit]: | 1 per direction |
| Positive opening: | With |
| Body material: | Zinc alloy |
|---|---|
| Switch actuation: | By any moving part |
| Cable entry: | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9...12 mm conforming to NF C 68-300 |
| Contacts insulation form: | Zb |
| Number of steps: | 1 |
| Positive opening minimum torque: | 0.7 N.m |
| Minimum torque for tripping: | 0.6 N.m |
| Minimum actuation speed: | 0.01 m/min |
| Maximum actuation speed: | 1.5 m/s |
| Maximum displacement angle: | -90 °90 ° |
| Contact code designation: | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix AQ300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508500 V (pollution degree 3) conforming to IEC 60947-1500 V (pollution degree 3) conforming to VDE 0110300 V conforming to CSA C22.2 No 14 |
| Maximum resistance across terminals: | 25 MOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 10 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate 5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate 5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate |
| Mechanical durability: | 10000000 cycles |
| Width: | 85 mm |
| Height: | 95 mm |
| Depth: | 75 mm |
| Product weight: | 1.135 kg |
| Terminals description ISO n°1: | (13-14)NO(21-22)NC |
| Compatibility code: | XCR |
| Shock resistance: | 68 gn conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 9 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection: | IP54 conforming to IEC 60529 |
| Overvoltage category: | Class I conforming to IEC 61140Class I conforming to NF C 20-030 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Protective treatment: | TC |
| Product certifications: | CCCCSA |
| Standards: | EN 60204-1IEC 60204-1IEC 60947-5-1CSA C22.2 No 14NF C 79-130EN 60947-5-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110652246 |
|---|
