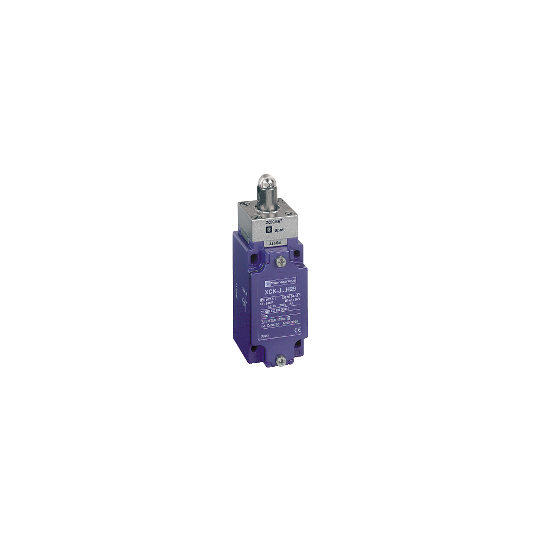

Télémécanique - OsiSense XCKJ - inter. de pos. - poussoir galet renforcé -1O+1F- brusque - Pg13 - XCKJ167
SKU : XCKJ167
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - OsiSense XCKJ - inter. de pos. - poussoir galet renforcé -1O+1F- brusque - Pg13 - XCKJ167
DESCRIPTION
| Range of product: | OsiSense XC |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCKJ |
| Sensor design: | Form C conforming to CENELEC EN 50041 |
| Body type: | Fixed |
| Head type: | Plunger head |
| Material: | Metal |
| Body material: | Zamak |
| Head material: | Zamak |
| Fixing mode: | By the body |
| Movement of operating head: | Linear |
| Type of operator: | Spring return roller plunger metal (reinforced) |
| Type of approach: | Lateral approach 2 directions |
| Cable entry: | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9...12 mm |
| Number of poles: | 2 |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Snap action |
| Switch actuation: | By 30° cam |
|---|---|
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Contacts insulation form: | Zb |
| Number of steps: | 1 |
| Positive opening: | With |
| Positive opening minimum force: | 40 N |
| Minimum force for tripping: | 16 N |
| Maximum actuation speed: | 1 m/s |
| [Ie] rated operational current: | 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 10 A |
| [Ui] rated insulation voltage: | 300 V conforming to CSA C22.2 No 14500 V degree of pollution 3 conforming to IEC 60947-1300 V conforming to UL 508 |
| Resistance across terminals: | |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| Short circuit protection: | 10 A by gG cartridge fuse |
| Electrical durability: | 5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate: 5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate: 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate: |
| Mechanical durability: | 25000000 cycles |
| Width: | 40 mm |
| Height: | 77 mm |
| Depth: | 44 mm |
| Product weight: | 0.455 kg |
| Terminals description ISO n°1: | (21-22)NC(13-14)NO |
| Shock resistance: | 50 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 25 gn (f = 10...500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection: | IP66 conforming to IEC 60529 |
| IK degree of protection: | IK07 conforming to EN 50102 |
| Overvoltage category: | Class I conforming to NF C 20-030Class I conforming to IEC 61140 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Protective treatment: | TC |
| Product certifications: | CSACCCUL |
| Standards: | CENELEC EN 50041UL 508EN 60204-1EN 60947-5-1CSA C22.2 No 14IEC 60947-5-1IEC 60204-1 |
| Warranty period: | 18 months |
| Sustainable offer status: | Green Premium productRoHS (date code: YYWW) |
| Code EAN: | 3389110645989 |
|---|---|
| Contexte: | N/A |
