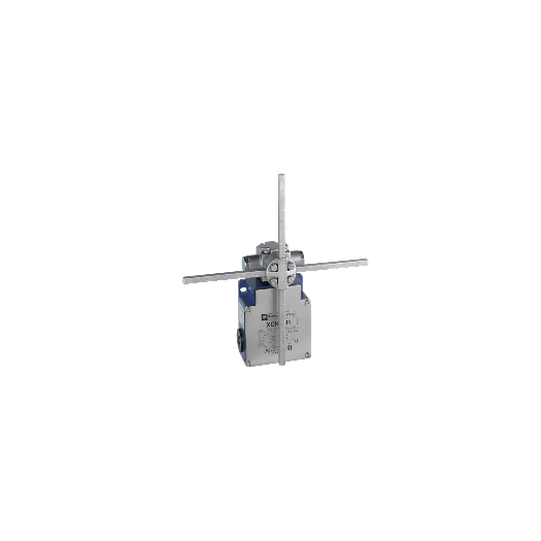

Télémécanique - OsiSense XCKML - inter. de pos. - tige métal X 6mm -2x(2O)- dépendante - M20 - XCKMR54D1H29
SKU : XCKMR54D1H29
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - OsiSense XCKML - inter. de pos. - tige métal X 6mm -2x(2O)- dépendante - M20 - XCKMR54D1H29
DESCRIPTION
| Range of product: | OsiSense XC |
|---|---|
| Series name: | Special format |
| Product or component type: | Limit switch |
| Product specific application: | For hoisting and mechanical handling applications |
| Device short name: | XCKMR |
| Body type: | Fixed |
| Head type: | Rotary head |
| Material: | Metal |
| Body material: | Zamak |
| Head material: | Zamak |
| Fixing mode: | By the body |
| Movement of operating head: | Rotary |
| Type of operator: | Stay put crossed rods lever metal (square rod 6 mm, L = 200 mm) |
| Type of approach: | Lateral approach 2 directions |
| Cable entry: | 3 entries tapped for M20 x 1.5 cable gland, cable outer diameter: 7...13 mm |
| Number of poles: | 4 |
| Contacts type and composition: | 2 x (2 NC) |
| Contact operation: | Slow-break, staggered |
| Switch actuation: | By any moving part |
|---|---|
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contacts insulation form: | Zb |
| Number of steps: | 5 electrical positions |
| Contact block per direction (control circuit): | 1 per direction |
| Positive opening: | With |
| Positive opening minimum torque: | 0.75 N.m |
| Minimum torque for tripping: | 0.5 N.m |
| Minimum actuation speed: | 6 m/min |
| Maximum actuation speed: | 1.5 m/s actuation point on the rod between 65 and 95 mm |
| Maximum displacement angle: | 180 °-180 ° |
| Contact code designation: | A300, AC-15 (Ue = 240 V, Ie = 3 A) , Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix AQ150, DC-13 (Ue = 125 V, Ie = 0.55 A) conforming to EN/IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 300 V conforming to CSA C22.2 No 14300 V conforming to UL 508500 V degree of pollution 3 conforming to EN/IEC 60947-1 |
| Resistance across terminals: | |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-16 kV conforming to IEC 60664 |
| Short circuit protection: | 10 A by gG cartridge fuse |
| Mechanical durability: | 2000000 cycles |
| Width: | 200 mm |
| Height: | 118 mm |
| Depth: | 59 mm |
| Product weight: | 0.55 kg |
| Terminals description ISO n°1: | (21-22)NC(11-12)NC |
| Shock resistance: | 50 gn conforming to EN/IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 25 gn (f = 10...500 Hz) conforming to EN/IEC 60068-2-6 |
| IP degree of protection: | IP66 conforming to EN/IEC 60529 |
| IK degree of protection: | IK07 conforming to EN 50102 |
| Electrical shock protection class: | Class I conforming to IEC 60536 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Protective treatment: | TC |
| Product certifications: | CECCCCSAUL |
| Standards: | EN/IEC 60947-5-1UL 508CSA C22.2 No 14 |
| Warranty period: | 18 months |
| Sustainable offer status: | Green Premium productRoHS (date code: YYWW) |
| Code EAN: | 3389110681970 |
|---|---|
| Contexte: | N/A |
