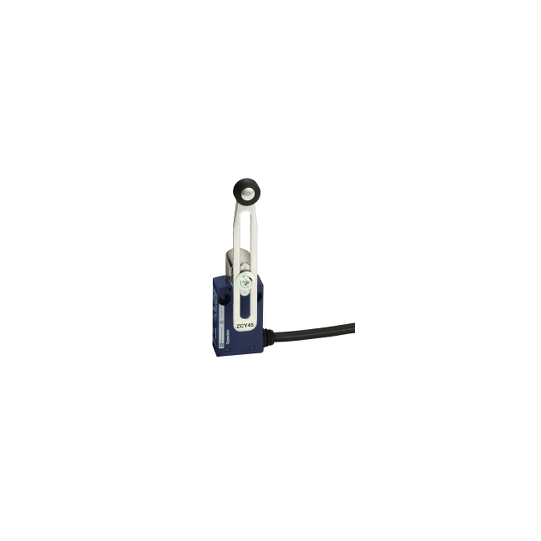

Télémécanique OsiSense XCMN - inter. de pos. - levier galet plast. long -1O+1OF - brusque - 2m - XCMN2145L2
SKU : XCMN2145L2
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique OsiSense XCMN - inter. de pos. - levier galet plast. long -1O+1OF - brusque - 2m - XCMN2145L2
DESCRIPTION
| Range of product: | OsiSense XC |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCMN |
| Sensor design: | Miniature |
| Body type: | Fixed |
| Head type: | Rotary head |
| Material: | Plastic |
| Body material: | Plastic |
| Head material: | Zamak |
| Fixing mode: | By the body |
| Movement of operating head: | Rotary |
| Type of operator: | Spring return roller lever thermoplastic (variable length) |
| Type of approach: | Lateral approach 2 directions |
| Number of poles: | 2 |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Snap action |
| Switch actuation: | By 30° cam |
|---|---|
| Electrical connection: | Fixed cable |
| Cable length: | 2 m |
| Cable composition: | 4 x 0.75 mm² |
| Wire insulation material: | PvR |
| Contacts insulation form: | Zb |
| Positive opening: | With |
| Positive opening minimum force: | 0.5 N |
| Minimum force for tripping: | 0.1 N |
| Maximum actuation speed: | 1.5 m/s |
| Contact code designation: | B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 300 V degree of pollution 3 conforming to CSA C22.2 No 14300 V degree of pollution 3 conforming to UL 508400 V degree of pollution 3 conforming to IEC 60947-5-1 |
| Resistance across terminals: | |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 606644 kV conforming to IEC 60947-1 |
| Short circuit protection: | 6 A by gG cartridge fuse |
| Electrical durability: | 5000000 cycles, DC-13, 120 V, 1 W, operating rate: 5000000 cycles, DC-13, 24 V, 3 W, operating rate: 5000000 cycles, DC-13, 48 V, 2 W, operating rate: |
| Mechanical durability: | 5000000 cycles |
| Width: | 30 mm |
| Height: | 143 mm |
| Depth: | 16 mm |
| Product weight: | 0.105 kg |
| Shock resistance: | 25 gn (duration = 18 ms) conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK04 conforming to EN 50102 |
| Electrical shock protection class: | Class II conforming to IEC 61140Class II conforming to NF C 20-030 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Protective treatment: | TC |
| Product certifications: | CSAULCCC |
| Standards: | EN/IEC 60204-1EN/IEC 60947-5-1UL 508CSA C22.2 No 14 |
| Warranty period: | 18 months |
| Sustainable offer status: | Not Green Premium productRoHS (date code: YYWW) |
| Code EAN: | 3389119000567 |
|---|---|
| Contexte: | N/A |
