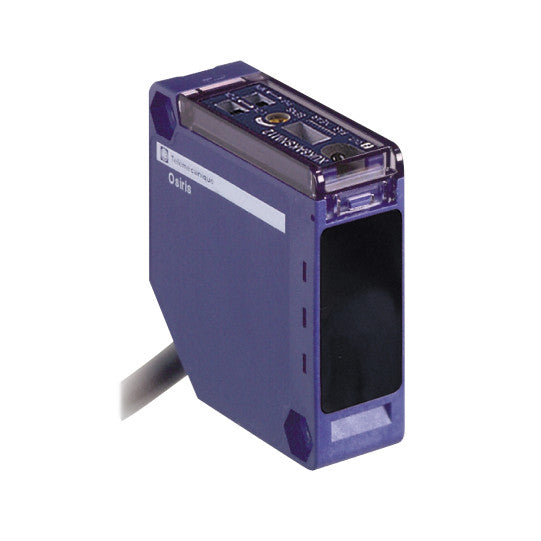

Télémécanique - photo-electric laser sensor - XUK - BGS - Sn 1m - 12..24VDC - M12 - XUK8AKSNM12
SKU : XUK8AKSNM12
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - photo-electric laser sensor - XUK - BGS - Sn 1m - 12..24VDC - M12 - XUK8AKSNM12
DESCRIPTION
| Range of product: | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name: | General purpose single mode |
| Electronic sensor type: | Photo-electric sensor |
| Sensor name: | XUK |
| Sensor design: | Compact 50 x 50 |
| Detection system: | Diffuse with background suppression |
| Sensing range: | > 0.3...1 m |
| Material: | Plastic |
| Type of output signal: | Discrete |
| Supply circuit type: | DC |
| Wiring technique: | 3-wire |
| Discrete output type: | PNP or NPN |
| Discrete output function: | 1 NO or 1 NC programmable |
| Electrical connection: | 1 male connector M12, 4 pins |
| Product specific application: | - |
| Emission: | Infrared laser, modulated diffuse with background suppression class 1 |
| [Sn] nominal sensing distance: | 1 m diffuse with background suppression |
| Enclosure material: | PC |
|---|---|
| Lens material: | PMMA |
| Maximum sensing distance: | 1 m diffuse with background suppression |
| Minimum object diameter for detection: | 2 mm |
| Output type: | Solid state |
| Wire insulation material: | PVC |
| Status LED: | 1 LED (yellow) for output state1 LED (green) for supply |
| [Us] rated supply voltage: | 12...24 V DC with reverse polarity protection |
| Supply voltage limits: | 10...36 V DC |
| Switching capacity in mA: | |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | |
| Maximum delay first up: | 300 ms |
| Maximum delay response: | 2 ms |
| Maximum delay recovery: | 2 ms |
| Setting-up: | Sensitivity adjustment by potentiometer |
| Depth: | 50 mm |
| Height: | 50 mm |
| Width: | 18 mm |
| Product weight: | 0.035 kg |
| Kit composition: | With XUZA51 bracket fixing |
| Product certifications: | CEEcolab |
|---|---|
| Ambient air temperature for operation: | -20...60 °C |
| Ambient air temperature for storage: | -30...70 °C |
| Vibration resistance: | 7 gn, amplitude = +/- 1.5 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection: | IP65 double insulation conforming to IEC 60529 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110057782 |
|---|
