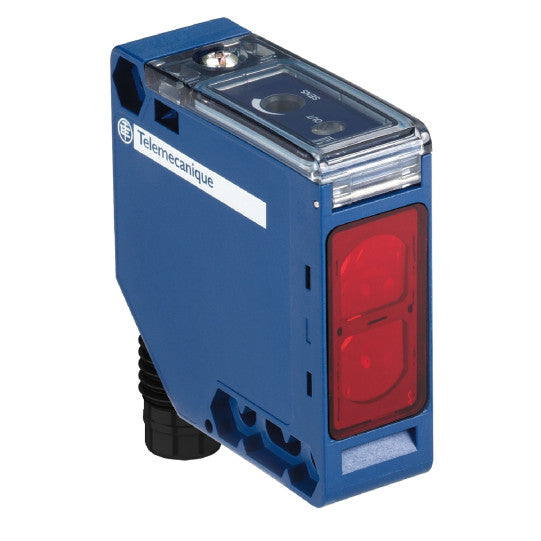

Télémécanique photo-electric sensor - XUK - diffuse - Sn 1m - 12..24VDC - M12 - XUK5APANM12
DESCRIPTION
| Range of product: | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name: | General purpose single mode |
| Electronic sensor type: | Photo-electric sensor |
| Sensor name: | XUK |
| Sensor design: | Compact 50 x 50 |
| Detection system: | Diffuse |
| Sensing range: | > 0.3...1 m |
| Material: | Plastic |
| Type of output signal: | Discrete |
| Supply circuit type: | DC |
| Wiring technique: | 3-wire |
| Discrete output type: | PNP |
| Discrete output function: | 1 NO |
| Electrical connection: | 1 male connector M12, 4 pins |
| Product specific application: | - |
| Emission: | Infrared diffuse |
| [Sn] nominal sensing distance: | 1 m diffuse |
| Enclosure material: | PBT |
|---|---|
| Lens material: | PMMA |
| Maximum sensing distance: | 1.5 m diffuse |
| Output type: | Solid state |
| Wire insulation material: | PVC |
| Status LED: | 1 LED (yellow) for output state |
| [Us] rated supply voltage: | 12...24 V DC |
| Switching capacity in mA: | |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | |
| Maximum delay first up: | 15 ms |
| Maximum delay response: | 2 ms |
| Maximum delay recovery: | 2 ms |
| Setting-up: | Without sensitivity adjustment |
| Depth: | 50 mm |
| Height: | 50 mm |
| Width: | 18 mm |
| Product weight: | 0.19 kg |
| Product certifications: | CECSAUL |
|---|---|
| Ambient air temperature for operation: | -25...55 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 7 gn, amplitude = +/- 1.5 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection: | IP65 double insulation conforming to IEC 60529 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110162547 |
|---|
