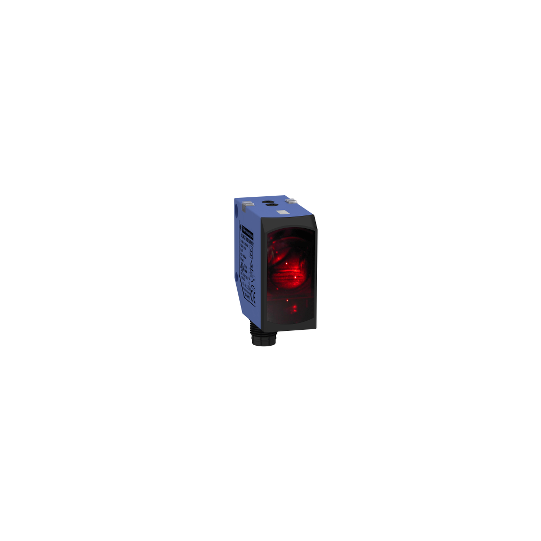

Télémécanique - photo-electric sensor - XUK - diffuse - Sn 5m 1Q auto PNP/NPN 1Qa 0...10V - XUK8TAE1MM12
SKU : XUK8TAE1MM12
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - photo-electric sensor - XUK - diffuse - Sn 5m 1Q auto PNP/NPN 1Qa 0...10V - XUK8TAE1MM12
DESCRIPTION
| Range of product: | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name: | Application assemblyApplication material handling |
| Electronic sensor type: | Photo-electric sensor |
| Sensor name: | XUK |
| Sensor design: | Compact 50 x 50 |
| Detection system: | Diffuse distance sensor |
| Sensing range: | > 0.1...5 m |
| Material: | Plastic |
| Type of output signal: | Analogue + discrete |
| Wiring technique: | 5-wire |
| Discrete output type: | PNP or NPN |
| Discrete output function: | 1 NO or 1 NC programmable |
| Analogue output range: | 0...10 V |
| Electrical connection: | 1 male connector M12, 5 pins |
| Product specific application: | Distance measurement on object |
| Emission: | Red laser diffuse distance sensor class 1 conforming to IEC 60825-1 |
| [Sn] nominal sensing distance: | 5 m diffuse distance sensor |
| Enclosure material: | ABS/PC |
|---|---|
| Lens material: | PMMA |
| Maximum sensing distance: | 5 m diffuse distance sensor |
| Output type: | AnalogSolid state |
| Add on input: | External teach |
| Status LED: | 1 LED (yellow) for output state1 LED (green/yellow) for supply on/output state |
| [Us] rated supply voltage: | 24 V DC with reverse polarity protection |
| Supply voltage limits: | 18...30 V DC |
| Switching capacity in mA: | |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | |
| Maximum delay first up: | 300 ms |
| Maximum delay response: | 1.2 ms |
| Maximum delay recovery: | 1.2 ms |
| Setting-up: | Using teach button or remote teaching |
| Depth: | 50 mm |
| Height: | 50 mm |
| Width: | 23 mm |
| Product weight: | 0.035 kg |
| Product certifications: | CEcULusEcolab |
|---|---|
| Ambient air temperature for operation: | -20...50 °C, UL certified-40...60 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Vibration resistance: | 7 gn, amplitude = +/- 1.5 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection: | IP67 conforming to IEC 60529IP69K conforming to DIN 40050 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3389119618083 |
|---|
