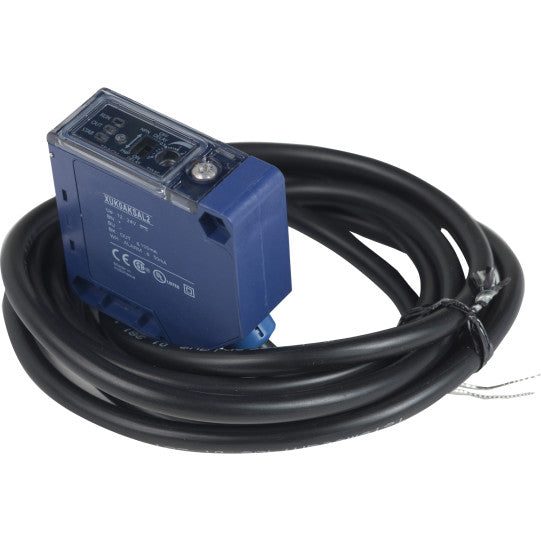

Télémécanique photo-electric sensor - XUK - multi - Sn 0..30m - 12..24VDC - cable 2m - XUK0AKSAL2
SKU : XUK0AKSAL2
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique photo-electric sensor - XUK - multi - Sn 0..30m - 12..24VDC - cable 2m - XUK0AKSAL2
DESCRIPTION
| Range of product: | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name: | General purpose multimode |
| Electronic sensor type: | Photo-electric sensor |
| Sensor name: | XUK |
| Sensor design: | Compact 50 x 50 |
| Detection system: | Multimode |
| Sensing range: | > 0...30 m |
| Material: | Plastic |
| Type of output signal: | Discrete |
| Supply circuit type: | DC |
| Wiring technique: | 3-wire |
| Discrete output type: | PNP or NPN |
| Discrete output function: | 1 NO or 1 NC programmable |
| Electrical connection: | Cable |
| Cable length: | 2 m |
| Product specific application: | - |
| Emission: | Infrared diffuseInfrared diffuse with background suppressionInfrared thru beamRed polarised reflex |
| [Sn] nominal sensing distance: | 4 m polarised reflex need reflector XUZC5030 m thru beam need a transmitter XUK0AKSAL2T0.28 m diffuse with background suppression0.8 m diffuse |
| Enclosure material: | PBT |
|---|---|
| Lens material: | PMMA |
| Maximum sensing distance: | 35 m thru beam0.28 m diffuse with background suppression1.2 m diffuse5.7 m polarised reflex |
| Output type: | Solid state |
| Add on output: | With alarm output, |
| Wire insulation material: | PvR |
| Status LED: | 1 LED (green) for supply1 LED (red) for instability1 LED (yellow) for output state |
| [Us] rated supply voltage: | 12...24 V DC with reverse polarity protection |
| Supply voltage limits: | 10...36 V DC |
| Switching capacity in mA: | |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | |
| Maximum delay first up: | 200 ms |
| Maximum delay response: | 2 ms |
| Maximum delay recovery: | 2 ms |
| Setting-up: | Self-teaching |
| Depth: | 50 mm |
| Height: | 50 mm |
| Width: | 18 mm |
| Product weight: | 0.175 kg |
| Product certifications: | CSAULCE |
|---|---|
| Ambient air temperature for operation: | -25...55 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 7 gn, amplitude = +/- 1.5 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection: | IP65 double insulation conforming to IEC 60529 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110160383 |
|---|
