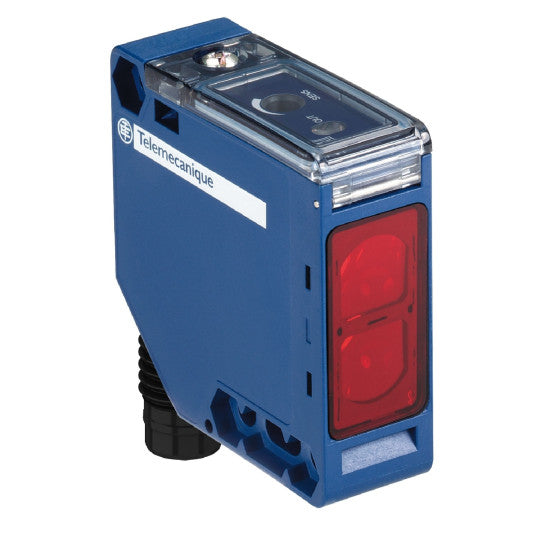

Télémécanique - Photo-electric sensor - XUK - receiver - Sn 30m - 12..24VDC - M12 - XUK2APANM12R
SKU : XUK2APANM12R
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - Photo-electric sensor - XUK - receiver - Sn 30m - 12..24VDC - M12 - XUK2APANM12R
DESCRIPTION
| Range of product: | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name: | General purpose single mode |
| Electronic sensor type: | Photo-electric sensor receiver |
| Sensor name: | XUK |
| Sensor design: | Compact 50 x 50 |
| Detection system: | Thru beam |
| Sensing range: | > 15...30 m |
| Material: | Plastic |
| Type of output signal: | Discrete |
| Supply circuit type: | DC |
| Wiring technique: | 3-wire |
| Discrete output type: | PNP |
| Discrete output function: | 1 NO |
| Electrical connection: | 1 male connector M12, 4 pins |
| Product specific application: | - |
| Emission: | Infrared thru beam |
| [Sn] nominal sensing distance: | 30 m thru beam need a transmitter XUK2AKSNM12T |
| Enclosure material: | PBT |
|---|---|
| Lens material: | PMMA |
| Maximum sensing distance: | 45 m thru beam |
| Output type: | Solid state |
| Add on output: | Without |
| Status LED: | 1 LED (yellow) for output state |
| [Us] rated supply voltage: | 12...24 V DC with reverse polarity protection |
| Supply voltage limits: | 10...36 V DC |
| Switching capacity in mA: | |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | |
| Maximum delay first up: | 15 ms |
| Maximum delay response: | 2 ms |
| Maximum delay recovery: | 2 ms |
| Setting-up: | Without sensitivity adjustment |
| Depth: | 50 mm |
| Height: | 50 mm |
| Width: | 18 mm |
| Product weight: | 0.075 kg |
| Product certifications: | ULCECSA |
|---|---|
| Ambient air temperature for operation: | -25...55 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 7 gn, amplitude = +/- 1.5 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection: | IP65 double insulation conforming to IEC 60529 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110161632 |
|---|
