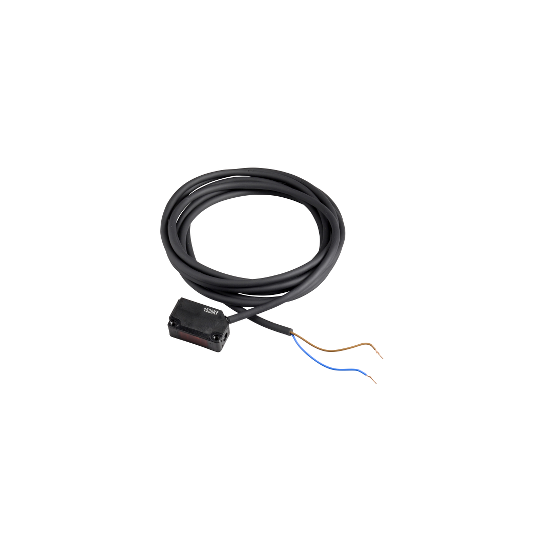

Télémécanique - photo-electric sensor - XUM - emitter - 12..24VDC - cable 2m - XUM2AKCNL2T
SKU : XUM2AKCNL2T
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - photo-electric sensor - XUM - emitter - 12..24VDC - cable 2m - XUM2AKCNL2T
DESCRIPTION
| Range of product: | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name: | General purpose single mode |
| Electronic sensor type: | Photo-electric sensor transmitter |
| Sensor name: | XUM |
| Sensor design: | Miniature |
| Detection system: | Thru beam |
| Sensing range: | > 5...15 m |
| Material: | Plastic |
| Supply circuit type: | DC |
| Wiring technique: | 2-wire |
| Electrical connection: | Cable |
| Cable length: | 2 m |
| Product specific application: | - |
| Emission: | Red thru beam |
| [Sn] nominal sensing distance: | 15 m thru beam need a receiver |
| Enclosure material: | PBT |
|---|---|
| Lens material: | PMMA |
| Add on input: | Test by emission breaking |
| Wire insulation material: | PVC |
| Status LED: | 1 LED (orange) for supply on |
| [Us] rated supply voltage: | 12...24 V DC with reverse polarity protection |
| Supply voltage limits: | 10...30 V DC |
| Switching capacity in mA: | |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | 11 mA no-load |
| Maximum delay first up: | 100 ms |
| Maximum delay response: | 0.5 ms |
| Maximum delay recovery: | 0.5 ms |
| Setting-up: | Sensitivity adjustment |
| Depth: | 20 mm |
| Height: | 34 mm |
| Width: | 11 mm |
| Product weight: | 0.063 kg |
| Product certifications: | CTickCEcULus |
|---|---|
| Ambient air temperature for operation: | -30...60 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 7 gn, amplitude = +/- 1.5 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection: | IP67 conforming to IEC 60529IP65 conforming to IEC 60529 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3389119034821 |
|---|
