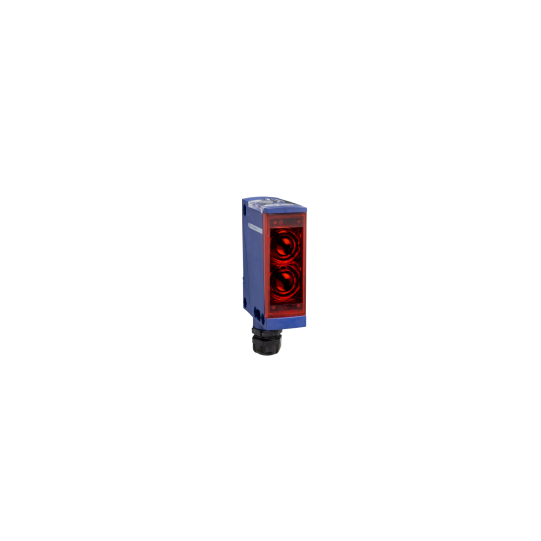

Télémécanique photo-electric sensor - XUX - emitter - 12..24VDC - terminals - XUX0AKSAT16T
DESCRIPTION
| Range of product: | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name: | General purpose multimode |
| Electronic sensor type: | Photo-electric sensor transmitter |
| Sensor name: | XUX |
| Sensor design: | Compact 92 x 71 |
| Detection system: | Thru beam |
| Sensing range: | > 30 m |
| Material: | Plastic |
| Supply circuit type: | DC |
| Wiring technique: | 3-wire |
| Electrical connection: | Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor |
| Product specific application: | - |
| Emission: | Infrared thru beam |
| [Sn] nominal sensing distance: | 40 m thru beam need a receiver |
| Enclosure material: | PBT |
|---|---|
| Lens material: | PMMA |
| Maximum sensing distance: | 60 m thru beam |
| Add on input: | Test by emission breaking |
| Cable entry: | 1 entry for M16 x 1.5 cable gland, cable outer diameter: 7...10 mm |
| Status LED: | 1 LED (green) for supply on |
| [Us] rated supply voltage: | 12...24 V DC with reverse polarity protection |
| Supply voltage limits: | 10...36 V DC |
| Switching capacity in mA: | |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | 20 mA no-load |
| Maximum delay first up: | 200 ms |
| Maximum delay response: | 2 ms |
| Maximum delay recovery: | 2 ms |
| Setting-up: | Without sensitivity adjustment |
| Depth: | 77 mm |
| Height: | 92 mm |
| Width: | 31 mm |
| Product weight: | 0.2 kg |
| Product certifications: | CSACEUL |
|---|---|
| Ambient air temperature for operation: | -25...55 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 7 gn, amplitude = +/- 1.5 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection: | IP65 double insulation conforming to IEC 60529IP67 double insulation conforming to IEC 60529 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110168051 |
|---|
