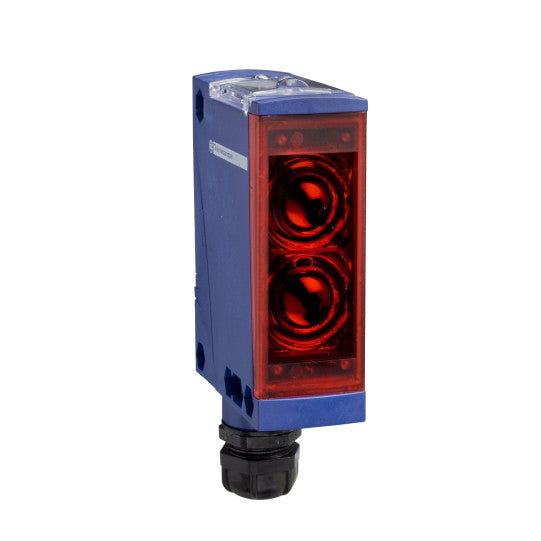

Télémécanique - photo-electric sensor - XUX - multi - Sn 0..40m - 12..24VDC - terminals - XUX0AKSAT16
SKU : XUX0AKSAT16
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - photo-electric sensor - XUX - multi - Sn 0..40m - 12..24VDC - terminals - XUX0AKSAT16
DESCRIPTION
| Range of product: | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name: | General purpose multimode |
| Electronic sensor type: | Photo-electric sensor |
| Sensor name: | XUX |
| Sensor design: | Compact 92 x 71 |
| Detection system: | Multimode |
| Sensing range: | > 0...40 m |
| Material: | Plastic |
| Type of output signal: | Discrete |
| Supply circuit type: | DC |
| Wiring technique: | 3-wire |
| Discrete output function: | 1 NO or 1 NC programmable |
| Electrical connection: | Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor |
| Product specific application: | - |
| Emission: | Infrared diffuseInfrared diffuse with background suppressionInfrared thru beamRed polarised reflex |
| [Sn] nominal sensing distance: | 11 m polarised reflex need reflector XUZC5040 m thru beam need a transmitter XUX0AKSAT16T2 m diffuse1.3 m diffuse with background suppression |
| Enclosure material: | PBT |
|---|---|
| Lens material: | PMMA |
| Maximum sensing distance: | 15 m polarised reflex3 m diffuse60 m thru beam1.3 m diffuse with background suppression |
| Output type: | Solid state |
| Add on output: | With alarm output, |
| Cable entry: | 1 entry for M16 x 1.5 cable gland, cable outer diameter: 7...10 mm |
| Status LED: | 1 LED (green) for supply1 LED (red) for instability1 LED (yellow) for output state |
| [Us] rated supply voltage: | 12...24 V DC with reverse polarity protection |
| Switching capacity in mA: | |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | |
| Maximum delay first up: | 200 ms |
| Maximum delay response: | 2 ms |
| Maximum delay recovery: | 2 ms |
| Setting-up: | Self-teaching |
| Depth: | 77 mm |
| Height: | 92 mm |
| Width: | 31 mm |
| Product weight: | 0.2 kg |
| Product certifications: | ULCSACE |
|---|---|
| Ambient air temperature for operation: | -25...55 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 7 gn, amplitude = +/- 1.5 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection: | IP65 double insulation conforming to IEC 60529IP67 double insulation conforming to IEC 60529 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110168044 |
|---|
