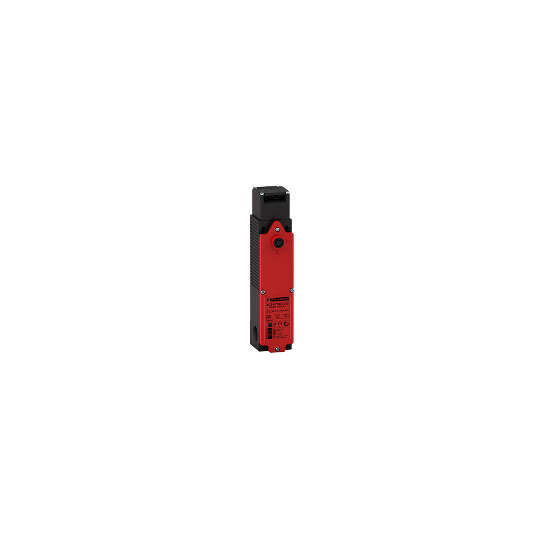

Télémécanique plastic safety switch XCSLE - 2NC+2NO- slow break - 3 entries tapped M20 - 24V - XCSLE2525312
SKU : XCSLE2525312
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique plastic safety switch XCSLE - 2NC+2NO- slow break - 3 entries tapped M20 - 24V - XCSLE2525312
DESCRIPTION
| Range of product: | Telemecanique Safety switches XCS |
|---|---|
| Product or component type: | Safety switch |
| Component name: | XCSLE |
| Design: | Slim |
| Material: | Plastic |
| Head type: | Key operated turret head |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Slow-break, break before make |
| Solenoid contacts type and composition: | 1 NC + 1 NO (slow-break, break before make) |
| Cable entry: | 3 entries tapped for M20 x 1.5 |
| Electromagnet interlocking: | Locking on de-energisation and unlocking on energisation of solenoid |
| [Us] rated supply voltage: | 24 V - 15...10 % |
| Cable outer diameter: | 7...13 mm |
| Electrical connection: | Spring terminal, clamping capacity: 1 x 1.5 mm² flexible or solid cableSpring terminal, clamping capacity: 2 x 0.5 mm² flexible cables with 13 mm bared ends |
| Number of poles: | 2 |
| Locking options description: | With interlocking, locking by solenoid |
| Local signalling: | 1 LED (orange) for actuator withdrawn1 LED (green) for actuator inserted and locked |
| Signalling circuit voltage: | 24 V |
| Insulation: | Double insulated |
|---|---|
| Positive opening: | With NC contact |
| Supply voltage type: | AC/DC |
| Supply frequency: | 50/60 Hz |
| Load factor: | 1 |
| Signalling circuit type: | AC/DC |
| Mechanical durability: | 1000000 cycles |
| Minimum actuation speed: | 0.01 m/s |
| Maximum actuation speed: | 0.5 m/s |
| [Ie] rated operational current: | 0.55 A at 24 V, DC-13, R300 conforming to EN/IEC 60947-5-10.75 A at 240 V, AC-15, R300 conforming to EN/IEC 60947-5-1 |
| [Ithe] conventional enclosed thermal current: | 4 A |
| Maximum load current: | |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508300 V conforming to CSA C22.2 No 14250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to EN/IEC 60947-5-1 |
| Minimum switching current: | 10 mA at 20 °C |
| Minimum switching voltage: | 17 V |
| Short-circuit protection: | 4 A cartridge fuse type gG (gl)6 A type fast blow |
| Maximum actuator forcible withdrawal rtc: | 1400 N |
| Minimum actuator force for extraction: | 20 N |
| Resistance to mechanical impact: | 1.2 J against the partition4.9 J without partition |
| Maximum operating rate: | 10 cyc/mn for maximum durability |
| Safety level: | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach SIL 3 conforming to EN/IEC 61508 |
| Safety reliability data: | B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body material: | PA (polyamide) |
| Head material: | PA (polyamide) |
| Depth: | 51 mm |
| Height: | 205 mm |
| Width: | 44 mm |
| Product weight: | 0.53 kg |
| Standards: | EN/IEC 60204-1CSA C22.2 No 14EN/IEC 62061UL 508EN/ISO 13849-1EN/IEC 60947-5-1EN 1088/ISO 14119 |
|---|---|
| Product certifications: | TÜVULCSA |
| Protective treatment: | TC |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 5 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 10 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection class: | Class II conforming to EN/IEC 61140 |
| IP degree of protection: | IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1IP67 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606489413637 |
|---|
