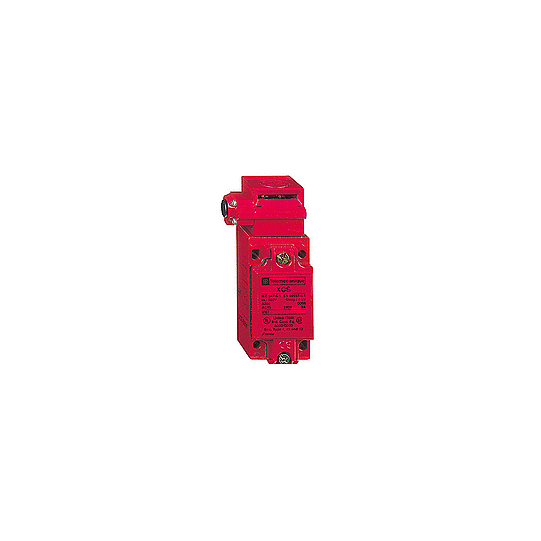

Télémécanique - Preventa XCS-B - inter. de pos. de sécu. métallique à clé - 1O+2F - 1xM20 - XCSB502
SKU : XCSB502
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - Preventa XCS-B - inter. de pos. de sécu. métallique à clé - 1O+2F - 1xM20 - XCSB502
DESCRIPTION
| Range of product: | Preventa Safety detection |
|---|---|
| Product or component type: | Safety switch |
| Component name: | XCSB |
| Design: | Industrial |
| Material: | Metal |
| Head type: | Key operated turret head |
| Contacts type and composition: | 1 NC + 2 NO |
| Contact operation: | Slow-break, break before make |
| Cable entry: | 1 entry tapped M20 x 1.5 |
| Cable outer diameter: | 7...13 mm |
| Electrical connection: | Terminal, 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Number of poles: | 3 |
| Locking options description: | With locking of actuator, unlocking by push-button |
| Local signalling: | Without |
| Positive opening: | With NC contact |
|---|---|
| Mechanical durability: | 600000 cycles |
| Minimum actuation speed: | 0.01 m/s |
| Maximum actuation speed: | 0.5 m/s |
| [Ie] rated operational current: | 6 A at 120 V utilisation category AC-15, A300 conforming to EN/IEC 60947-5-1 |
| [Ithe] conventional enclosed thermal current: | 10 A |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-5-1 |
| Short circuit protection: | 10 A cartridge fuse type gG (gl) |
| Actutr forcible withdrawal rtc: | 1500 N |
| Actuator force for extraction: | >= 20 N |
| Operating rate: | 10 cyc/mn for maximum durability |
| Safety level: | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 |
| Safety reliability data: | B10d = 5000000 (value given for a life time of 20 years limited by mechanical or contact wear) |
| Body material: | Zamak |
| Head material: | Zamak |
| Depth: | 44 mm |
| Height: | 114 mm |
| Width: | 52 mm |
| Product weight: | 0.475 kg |
| Standards: | EN 1088/ISO 14119EN/IEC 60204-1EN/IEC 60947-5-1EN/ISO 12100UL 508CSA C22.2 No 14 |
|---|---|
| Product certifications: | CSAUL |
| Protective treatment: | TC |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 10 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection class: | Class I conforming to EN/IEC 60536 |
| IP degree of protection: | IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Warranty period: | 18 months |
| Sustainable offer status: | Green Premium productRoHS (date code: YYWW) |
| Code EAN: | 3389110184938 |
|---|---|
| Contexte: | N/A |
