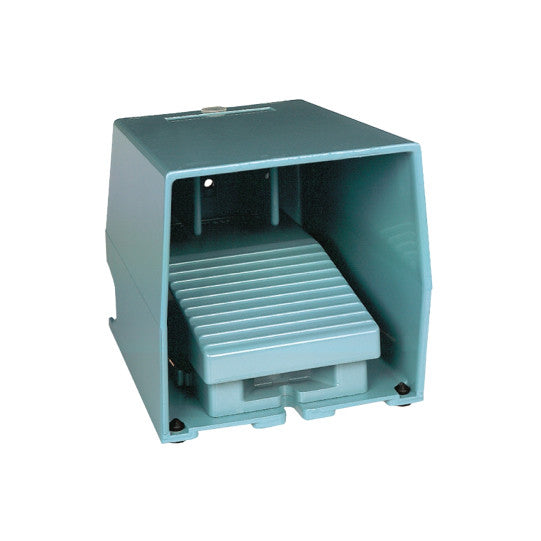

Télémécanique - Preventa XPE, Single foot switch, metal, blue, with cover, 1 NO + 1 NC - XPEM310
SKU : XPEM310
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - Preventa XPE, Single foot switch, metal, blue, with cover, 1 NO + 1 NC - XPEM310
DESCRIPTION
| Range of product: | Harmony XPE |
|---|---|
| Product or component type: | Foot switch |
| Material: | Metal |
| Foot switch type: | Single foot switch |
| Device short name: | XPEM |
| Provided equipment: | Cover |
| Trigger mechanism: | Without trigger mechanism |
| Contact operation: | 1 step |
| Contacts type and composition: | 1 NC + 1 NO |
| Colour: | Blue |
| Positive opening: | With conforming to EN/IEC 60947-5-1 appendix K |
|---|---|
| Connections - terminals: | Screw clamp terminal, Screw clamp terminal, |
| Cable entry: | 2 entries tapped for Pg 16 cable gland |
| Mechanical durability: | 15000000 cycles |
| [Ie] rated operational current: | 3 A, 240 V, AC-15, A3000.27 A, 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 500 V (pollution degree 3) conforming to EN/IEC 60947-1500 V (pollution degree 3) conforming to NF C 20-040 group C500 V (pollution degree 3) conforming to VDE 0110 group C300 V conforming to UL 508300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-1 |
| Maximum resistance across terminals: | 25 MOhm conforming to IEC 60255-7 category 325 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection: | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-110 A cartridge fuse type gG conforming to VDE 0660-200 |
| Rated operational power in W: | 10 W DC-13, operating rate 4 W DC-13, operating rate 7 W DC-13, operating rate |
| Product weight: | 2.4 kg |
| Compatibility code: | XPEM |
| Standards: | NF E 09-031 |
|---|---|
| Product certifications: | CSAFIMKO |
| Protective treatment: | TC |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 15 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 150 gn conforming to NF E 09-03120 gn conforming to IEC 60068-2-27 |
| Overvoltage category: | Class I conforming to EN/IEC 61140Class I conforming to NF C 20-030 |
| IP degree of protection: | IP66 conforming to IEC 60529IP669 conforming to NF C 20-010 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110600360 |
|---|
