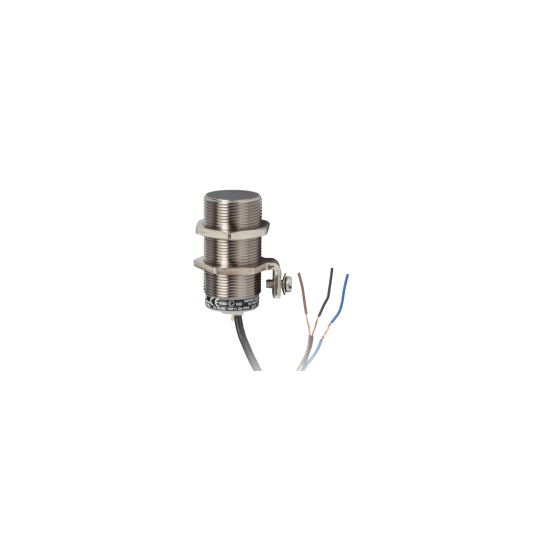

Télémécanique - rotation monitoring hazardous area - M30 - Sn10mm - 6..150c/mn - NC - cable 2m - XSAV11373EX
SKU : XSAV11373EX
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - rotation monitoring hazardous area - M30 - Sn10mm - 6..150c/mn - NC - cable 2m - XSAV11373EX
DESCRIPTION
| Range of product: | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name: | Application |
| Sensor type: | Inductive proximity sensor |
| Device application: | Rotation monitoring ATEX dust |
| Sensor name: | XSA |
| Sensor design: | Cylindrical M30 |
| Size: | 30 mm |
| Body type: | Fixed |
| Detector flush mounting acceptance: | Flush mountable |
| Material: | Metal |
| Enclosure material: | Nickel plated brass |
| [Sn] nominal sensing distance: | 10 mm |
| Type of output signal: | Discrete |
| Wiring technique: | 3-wire |
| Discrete output function: | 1 NC |
| Output circuit type: | DC |
| Discrete output type: | PNP |
| Electrical connection: | Cable |
| Cable length: | 2 m |
| [Us] rated supply voltage: | 12...48 V DC with reverse polarity protection |
| Switching capacity in mA: | |
| IP degree of protection: | IP67 conforming to IEC 60529 |
| Thread type: | M30 x 1.5 |
|---|---|
| Detection face: | Frontal |
| Front material: | PPS |
| Sensing range: | > 8...15 mm |
| Adjustable frequency range: | 6...150 cyc/mn |
| Operating zone: | 0...8 mm |
| Differential travel: | 3...15% of Fr |
| Repeat accuracy: | 3% of Sr |
| Cable composition: | 3 x 0.34 mm² |
| Wire insulation material: | PvR |
| Status LED: | Output state: 1 LED (red) |
| Supply voltage limits: | 10...58 V DC |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | 0...15 mA no-load |
| Run-up delay at power-up: | 9 s standard |
| Marking: | II2 D-Ex tb IIIC T90°C Db IP67 |
| Threaded length: | 57 mm |
| Length: | 81 mm |
| Environmental characteristic: | Hazardous location |
|---|---|
| Standards: | EN/IEC 60079-31EN/IEC 60079-0 |
| Directives: | 2014/34/EU - ATEX directive |
| Product certifications: | INERIS 04ATEX0022XIEC-Ex INE 17.0006 |
| Ambient air temperature for operation: | -20...60 °C |
| Dust zone: | Zone 21 - 22 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110955491 |
|---|
