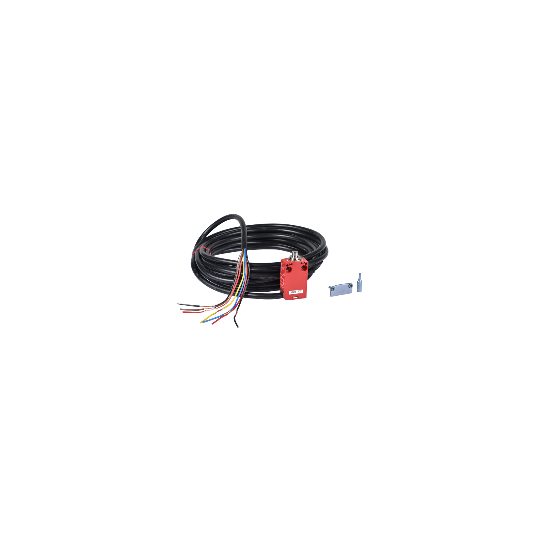

Télémécanique - safety limit switch XCSM - metal - steel plunger - 2 NC + 2 NO - cable 1 m - XCSM4110L1
SKU : XCSM4110L1
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - safety limit switch XCSM - metal - steel plunger - 2 NC + 2 NO - cable 1 m - XCSM4110L1
DESCRIPTION
| Range of product: | Telemecanique Safety switches XCS |
|---|---|
| Product or component type: | Safety limit switch |
| Component name: | XCSM |
| Design: | Miniature |
| Material: | Metal |
| Head type: | Plunger head |
| Protection technology: | Plastic protective cover, secured by 5-lobe socket head safety screw |
| Type of operator: | Metal end plunger |
| Contacts type and composition: | 1 NC + 1 NC + 1 NO + 1 NO |
| Contact operation: | Snap action |
| Electrical connection: | Pre-cabled |
|---|---|
| Cable length: | 1 m |
| Cable composition: | 9 x 0.34 mm² |
| Fixing mode: | By the body |
| Number of poles: | 4 |
| Positive opening: | With NC contact |
| Mechanical durability: | 10000000 cycles |
| Minimum force for tripping: | 8.5 N |
| Positive opening minimum force: | 42.5 N |
| Minimum actuation speed: | 0.01 m/min |
| Maximum actuation speed: | 0.5 m/s |
| Contact code designation: | B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN 60947-5-1B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN 60947-5-1R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508400 V (pollution degree 3) conforming to IEC 60947-5-1300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 606644 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals: | 25 MOhm conforming to IEC 60255-7 category 3 |
| Short-circuit protection: | 6 A cartridge fuse type gG (gl) |
| Repeat accuracy: | 0.05 mm on the tripping points |
| Body material: | Zamak |
| Head material: | Zamak |
| Depth: | 16 mm |
| Height: | 60 mm |
| Width: | 30 mm |
| Product weight: | 0.165 kg |
| Standards: | EN/IEC 60204-1EN/IEC 60947-5-1EN 1088UL 508CSA C22.2 No 14 |
|---|---|
| Product certifications: | CSAUL |
| Safety level: | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety reliability data: | B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Protective treatment: | TC |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 5 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 25 gn for 18 ms conforming to IEC 60068-2-27 |
| Electrical shock protection class: | Class I conforming to NF C 20-030Class I conforming to EN/IEC 61140 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67 conforming to IEC 60529IP68 conforming to IEC 60529 |
| IK degree of protection: | IK06 conforming to EN 50102 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110244229 |
|---|
