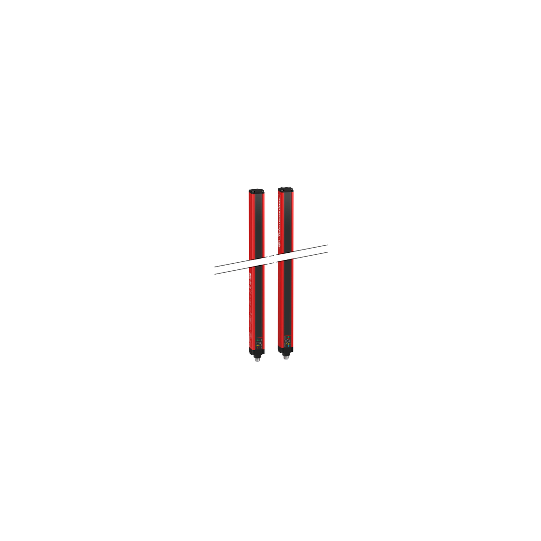

Télémécanique - XUSL type 4 - Body protection - Long sensing range - 4 Beams, Hp = 910 mm - XUSL4E4BB091L
SKU : XUSL4E4BB091L
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - XUSL type 4 - Body protection - Long sensing range - 4 Beams, Hp = 910 mm - XUSL4E4BB091L
DESCRIPTION
| Range of product: | Telemecanique Safety light curtains XUSL |
|---|---|
| Product or component type: | Safety light curtain type 4 |
| Device short name: | XUSL4E |
| Output type: | 2 safety outputs OSSD solid-state PNP (arc suppression) |
| Product specific application: | For body protection |
| [Sn] nominal sensing distance: | 3...20 m by cabling0...10 m by cabling |
| Height protected: | 910 mm |
| Number of beams: | 4 |
| Distance between axis: | 300 mm |
| Type of start: | AutomaticManual |
| Control type: | Selected by wiring |
| Detection system: | Transmitter-receiver system |
|---|---|
| Response time: | 2.5 ms |
| Kit composition: | adjustable mounting bracket(s)1 receiver(s)1 transmitter(s) 1 user guide with certificate of conformity on CD-ROM |
| [EAA] effective aperture angle: | 2.5 ° at 3 m |
| Emission: | IR LED 950 nm |
| [Us] rated supply voltage: | 24 V DC +/- 20 % |
| Supply: | Power supply conforming to IEC 61496-1Power supply conforming to IEC 60204-1 |
| [Ie] rated operational current: | 2 A |
| Current consumption: | 42 mA no-load transmitter83 mA no-load receiver42 mA transmitter900 mA with maximum load receiver |
| Output current limits: | 0.4 A for safety outputs OSSD |
| Output voltage: | 24 V |
| Output circuit type: | DC |
| Maximum voltage drop: | |
| Local signalling: | 1 multi-colour LED transmitter2 dual colour LEDs receiver |
| Electrical connection: | 1 male connector M12 5 pins transmitter1 male connector M12 8 pins receiver |
| Function available: | TestMuting through external safety module XPSLCMUT1160LED display of operating modes and faults |
| Marking: | CE |
| Material: | Aluminium: casingPolycarbonate: front panelPolypropylene: end caps |
| Housing colour: | Red RAL 3000 |
| Fixing mode: | By fixing brackets |
| Product weight: | 1.7 kg |
| Offer type: | Long distance |
| Directives: | 89/655/EEC - work equipment89/336/EEC - electromagnetic compatibility98/37/EEC - machinery |
|---|---|
| Product certifications: | CETÜVcULus |
| Safety level: | Type 4 conforming to IEC 61496-1SIL 3 conforming to IEC 61508SILCL 3 conforming to IEC 62061Category 4 conforming to EN/ISO 13849-1PL = e conforming to EN/ISO 13849-1 |
| Environmental characteristic: | Resistance to light disturbance conforming to EN/IEC 61496-2 |
| Service life: | 20 year(s) |
| Average diagnostic coverage: | DCavg = 96.1 % conforming to EN/ISO 13849-1 |
| Safety reliability data: | PFHd = 8.21E-9 1/h conforming to IEC 61508 |
| Ambient air temperature for operation: | -20...55 °C-10...55 °C |
| Ambient air temperature for storage: | -25...70 °C-35...70 °C |
| Relative humidity: | 0...95 % without condensation |
| IP degree of protection: | IP65IP67 |
| Shock resistance: | 10 gn for 16 ms conforming to IEC 61496-1 |
| Vibration resistance: | 0.35 +/- 0.05 mm (f= 10...55 Hz) conforming to IEC 61496-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119618670 |
|---|
