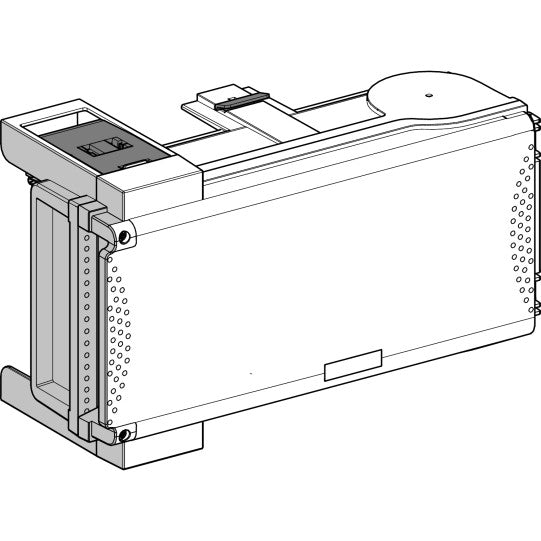

TAP OFF UNIT 50A FUSE 14X51 - KSB50SF4
SKU : KSB50SF4
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TAP OFF UNIT 50A FUSE 14X51 - KSB50SF4
DESCRIPTION
| Range of product: | Canalis |
|---|---|
| Range: | Canalis |
| Range compatibility: | KT busbar trunkingKS busbar trunking |
| Product or component type: | Tap-off unit |
| Product compatibility: | Canalis KS busbar trunkingplug-inCanalis KT busbar trunking with KS type plug-in |
| [Ie] rated operational current: | 50 A at 35 °C |
| Fuse type: | fuse isolator: for aM cylindrical fuse, size 14 x 51 mm - 50 A conforming to NF fuse isolator: for gG cylindrical fuse, size 14 x 51 mm - 50 A conforming to NF |
| Provided equipment: | fuse to be ordered separately |
| Mounting mode: | Plug-in with fixed polarity |
| Tap-off unit polarity: | 3L+N+PE |
| Colour: | White (RAL 9001) |
| Function available: | Fuse isolator |
|---|---|
| Device application: | Medium power distribution |
| [Ue] rated operational voltage: | 230...690 V depending on protective device |
| [Uimp] rated impulse withstand voltage: | 6.8 kV |
| [Ui] rated insulation voltage: | 500 V depending on protective device |
| Network frequency: | 50/60 Hz |
| Electrical connection: | Cable clamp terminal - ISO50 25 mm² flexibleCable clamp terminal - ISO50 25 mm² rigid |
| Door opening side: | Right |
| Tap-off unit disconnection mode: | By opening the door |
| Standards: | IEC 61439-1IEC 61439-6 |
| Body material: | Plastic |
| Width: | 356 mm |
| Depth: | 103 mm |
| Door opening size: | 432.5 mm |
| Height: | 202 mm |
| Product weight: | 2.4 kg |
| Earthing system: | TTTN-SIT |
|---|---|
| IP degree of protection: | IP55 conforming to IEC 60529 |
| IK degree of protection: | IK08 conforming to IEC 62262 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480006050 |
|---|
