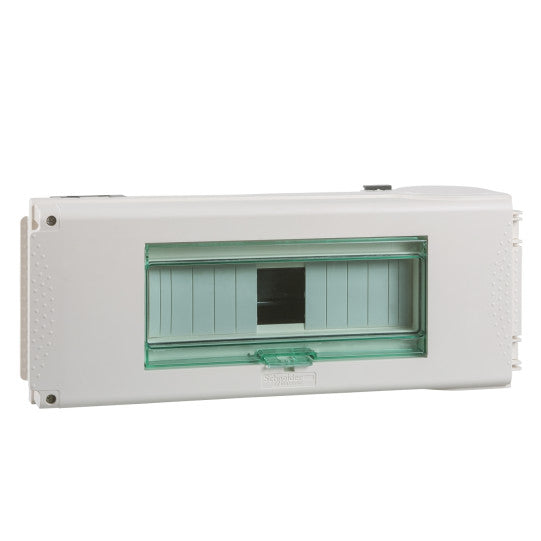

TAPOFF UNIT 63A FOR MODULAR EQUIPMENT - KNB63SM48
DESCRIPTION
| Range of product: | Canalis |
|---|---|
| Range: | Canalis |
| Range compatibility: | KN busbar trunking |
| Product or component type: | Tap-off unit |
| Product compatibility: | Canalis KN busbar trunkingplug-in |
| [Ie] rated operational current: | 63 A |
| Protection type: | Circuit breaker: miniature circuit breaker (MCB) |
| Mounting mode: | Plug-in with fixed polarity |
| Tap-off unit polarity: | 3L+N+PE |
| Colour: | White (RAL 9001) |
| Function available: | Circuit breaker |
|---|---|
| Device application: | Low power distribution |
| Provided equipment: | circuit-breaker to be ordered separately blanking plate |
| [Ue] rated operational voltage: | 230...500 V depending on protective device |
| [Uimp] rated impulse withstand voltage: | 4.6 kV |
| [Ui] rated insulation voltage: | 400 V depending on protective device500 V depending on protective device |
| Network frequency: | 50/60 Hz |
| Electrical connection: | Tunnel terminal - ISO50 25 mm² flexibleTunnel terminal - ISO50 25 mm² rigid |
| Door opening side: | Right |
| Tap-off unit disconnection mode: | By opening the door |
| Standards: | IEC 61439-6IEC 61439-1 |
| 18 mm pitches: | 8 |
| Width: | 344 mm |
| Depth: | 106 mm |
| Door opening size: | 432.5 mm |
| Height: | 165 mm |
| Product weight: | 1.4 kg |
| Earthing system: | TTTN-SIT |
|---|---|
| IP degree of protection: | IP55 conforming to IEC 60529 |
| IK degree of protection: | IK08 conforming to IEC 62262 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480006319 |
|---|
