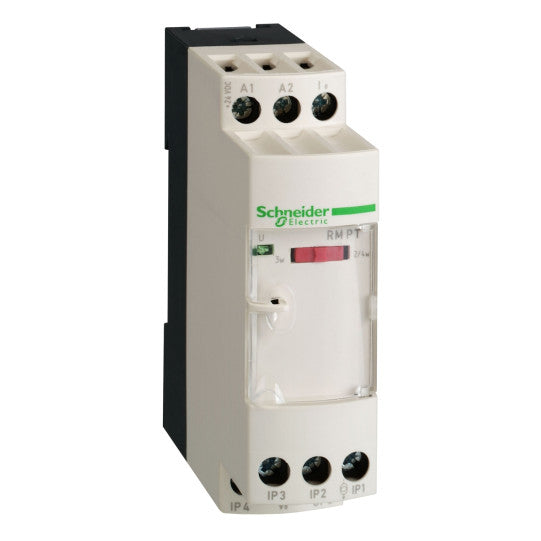

temperature transmitter - 0..100 °C/32..212 °F - for Optimum Pt100 probes - RMPT33BD
SKU : RMPT33BD
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
temperature transmitter - 0..100 °C/32..212 °F - for Optimum Pt100 probes - RMPT33BD
DESCRIPTION
| Range of product: | Harmony Analog |
|---|---|
| Product or component type: | Converter for Optimum Pt100 probes |
| Analogue input type: | Temperature probe 0...100 °C/32..212 °F Pt 100 2, 3 or 4 wires |
| Analogue output type: | Current 4...20 mA Voltage 0...10 V >= 100 kOhm |
| Protection type: | Short-circuit protection on outputReverse polarity protection on outputOvervoltage protection on output (+/- 30 V)Reverse polarity protection on power supply |
|---|---|
| Analogue output voltage: | -15...-11 V when no input or input wire broken11...15 V when no input or input wire broken |
| Analogue output current: | -30...0 mA when no input or input wire broken22...30 mA when no input or input wire broken |
| [Us] rated supply voltage: | 24 V DC non isolated +/- 20 % |
| Current consumption: | |
| Local signalling: | LED (green) for power ON |
| Measurement error: | +/- 0.5 % of full scale (3 or 4 wires) at 20 °C+/- 1 % of full scale (2 wires) at 20 °C+/- 10 % of full scale at 20 °C (electromagnetic interference of 10 V/m) |
| Repeat accuracy: | +/- 0.2 % full scale at 20 °C+/- 0.6 % full scale at 60 °C |
| Temperature coefficient: | 150 ppm/°C |
| Maximum wiring resistance: | 0.2 Ohm connection in 2 wires |
| Clamping connection capacity: | 2 x 1.5 mm²1 x 2.5 mm² |
| Tightening torque: | 0.6...1.1 N.m |
| Marking: | CE |
| Surge withstand: | 0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5 |
| [Ui] rated insulation voltage: | 2000 V |
| Fixing mode: | Clip-on (35 mm symmetrical DIN rail)Fixed (mounting plate) |
| Safety reliability data: | MTTFd = 43.9 yearsB10d = 40564 |
| Product weight: | 0.12 kg |
| Electromagnetic compatibility: | Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 |
|---|---|
| Standards: | DIN 43760EN/IEC 60584-1EN/IEC 60751EN/IEC 60947-1 |
| Product certifications: | ULGLCSA |
| IP degree of protection: | IP20 (terminal block)IP50 (housing) |
| Fire resistance: | 850 °C conforming to IEC 60695-2-1850 °C conforming to UL |
| Shock resistance: | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance: | 5 gn (f= 10...100 Hz) conforming to IEC 60068-2-6 |
| Resistance to fast transients: | 1 kV (on input-output) conforming to IEC 61000-4-42 kV (on power supply) conforming to IEC 61000-4-4 |
| Disturbance radiated/conducted: | CISPR 22 group 1 - class BCISPR 11 |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | 0...50 °C mounting side by side0...60 °C 2 cm spacing |
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110108972 |
|---|
