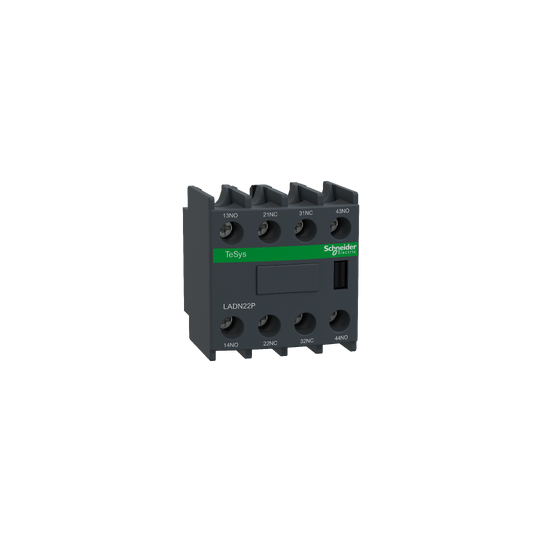

TeSys D - bloc de contacts auxiliaires - 2F+2O - bornes à vis-étriers - LADN22P
DESCRIPTION
| Range of product: | TeSys DTeSys F |
|---|---|
| Range: | TeSys |
| Device short name: | LADN |
| Product or component type: | Auxiliary contact block |
| Range compatibility: | TeSys D LC1D contactorTeSys D LP1D contactor |
| Auxiliary contacts operation: | Instantaneous |
| Pole contact composition: | 2 NO + 2 NC |
| Connections - terminals: | Screw clamp terminals 1 cable 1...2.5 mm² - cable stiffness: flexible - with cable endScrew clamp terminals 1 cable 1...2.5 mm² - cable stiffness: flexible - without cable endScrew clamp terminals 1 cable 1...2.5 mm² - cable stiffness: solid - with cable endScrew clamp terminals 1 cable 1...2.5 mm² - cable stiffness: solid - without cable endScrew clamp terminals 2 cable 1...2.5 mm² - cable stiffness: flexible - with cable endScrew clamp terminals 2 cable 1...2.5 mm² - cable stiffness: flexible - without cable endScrew clamp terminals 2 cable 1...2.5 mm² - cable stiffness: solid - with cable endScrew clamp terminals 2 cable 1...2.5 mm² - cable stiffness: solid - without cable end |
| Mounting location: | Front |
|---|---|
| [Ui] rated insulation voltage: | 690 V - conforming to IEC 60947-5-1600 V - certifications CSA600 V - certifications UL |
| [Ue] rated operational voltage: | 690 V AC 25...400 Hz |
| [Ith] conventional free air thermal current: | 10 A at |
| Irms rated making capacity: | 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 |
| Permissible short-time rating: | 100 A at -5...60 °C 1 s120 A at -5...60 °C 500 ms140 A at -5...60 °C 100 ms |
| Protection type: | GG fuse |
| Associated fuse rating: | 10 A gG IEC 60947-5-1 |
| Mechanical durability: | 30 Mcycles |
| Minimum switching current: | 5 mA |
| Minimum switching voltage: | 17 V |
| Non-overlap time: | 1.5 ms on de-energisation (no overlap between NC and NO contact)1.5 ms on energisation (no overlap between NC and NO contact) |
| Overlap time: | 1.5 ms |
| Insulation resistance: | > 10 MOhm |
| Product weight: | 0.05 kg |
| Environmental characteristic: | Normal environment |
|---|---|
| Standards: | NF C 63-140VDE 0660IEC 60947-5-1BS 4794EN 60947-5-1EN 50012 |
| Product certifications: | CSAUL |
| IP degree of protection: | IP2x conforming to VDE 0660 |
| Protective treatment: | TH conforming to IEC 60068 |
| Ambient air temperature for operation: | -5...60 °C |
| Ambient air temperature for storage: | -60...80 °C |
| Operating altitude: | 3000 m without derating in temperature |
| Warranty period: | 18 months |
| Sustainable offer status: | Green Premium productRoHS (date code: YYWW) |
| Code EAN: | 3389110384079 |
|---|---|
| Contexte: |
Contactor
Control Relay Relays with 5 poles as standard with 10A thermally rated contacts suitable for AC or DC control voltages. In addition a DC control circuit version with low consumption and built in suppression is available.
|
