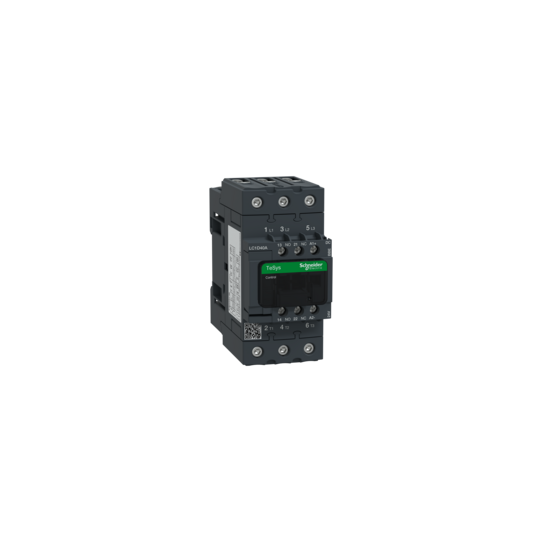

TeSys D contactor - 3P - <= 440 V - 40 A AC-3 - 24 V DC coil - LC1D40ABBE
DESCRIPTION
| Range of product: | TeSys DTeSys Deca |
|---|---|
| Range: | TeSysTeSys Deca |
| Product name: | TeSys D GreenTeSys Deca |
| Product or component type: | Contactor |
| Device short name: | LC1D |
| Contactor application: | Motor controlResistive load |
| Utilisation category: | AC-1AC-3AC-3e |
| Poles description: | 3P |
| Pole contact composition: | 3 NO |
| [Ue] rated operational voltage: | Power circuit: |
| [Ie] rated operational current: | 60 A (at 40 A (at 40 A (at |
| Motor power kW: | 11 kW at 220...230 V AC 50 Hz (AC-3)18.5 kW at 380...400 V AC 50 Hz (AC-3)22 kW at 415 V AC 50 Hz (AC-3)22 kW at 440 V AC 50 Hz (AC-3)22 kW at 500 V AC 50 Hz (AC-3)30 kW at 660...690 V AC 50 Hz (AC-3)11 kW at 220...230 V AC 50 Hz (AC-3e)18.5 kW at 380...400 V AC 50 Hz (AC-3e)22 kW at 415 V AC 50 Hz (AC-3e)22 kW at 440 V AC 50 Hz (AC-3e)22 kW at 500 V AC 50 Hz (AC-3e)30 kW at 660...690 V AC 50 Hz (AC-3e) |
| Motor power hp: | 3 hp at 115 V AC 60 Hz for 1 phase motors5 hp at 230/240 V AC 60 Hz for 1 phase motors10 hp at 200/208 V AC 60 Hz for 3 phases motors10 hp at 230/240 V AC 60 Hz for 3 phases motors30 hp at 460/480 V AC 60 Hz for 3 phases motors30 hp at 575/600 V AC 60 Hz for 3 phases motors |
| Control circuit type: | DC DC low consumption |
| [Uc] control circuit voltage: | 24 V DC |
| Coil type: | DC low consumption |
| Auxiliary contact composition: | 1 NO + 1 NC |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947 |
| Overvoltage category: | III |
| [Ith] conventional free air thermal current: | 60 A (at 60 °C) for power circuit10 A (at 60 °C) for signalling circuit |
| Irms rated making capacity: | 800 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity: | 800 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current: | 72 A 40 °C - 10 min for power circuit165 A 40 °C - 1 min for power circuit320 A 40 °C - 10 s for power circuit720 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit |
| Associated fuse rating: | 80 A gG at 80 A gG at 10 A gG for signalling circuit conforming to IEC 60947-5-1 |
| Average impedance: | 1.5 mOhm - Ith 60 A 50 Hz for power circuit |
| [Ui] rated insulation voltage: | Power circuit: 690 V conforming to IEC 60947-4-1Signalling circuit: 690 V conforming to IEC 60947-1 |
| Electrical durability: | 2 Mcycles 35 A AC-3 at Ue 0.7 Mcycles 60 A AC-1 at Ue 2 Mcycles 35 A AC-3e at Ue |
| Power dissipation per pole: | 5.4 W AC-12.4 W AC-32.4 W AC-3e |
| Protective cover: | With |
| Mounting support: | PlateRail |
| Standards: | EN/IEC 60947-4-1EN/IEC 60947-5-1UL 60947-4-1CSA C22.2 No 60947-4-1IEC 60335-1 |
| Product certifications: | CCCCSAEACULKCDNV-GLLROS (Lloyds register of shipping)UKCA |
| Connections - terminals: | Power circuit: EverLink BTR screw connectors 1 cable(s) 1...35 mm²solidPower circuit: EverLink BTR screw connectors 2 cable(s) 1...25 mm²solidPower circuit: EverLink BTR screw connectors 1 cable(s) 1...35 mm²flexible without cable endPower circuit: EverLink BTR screw connectors 2 cable(s) 1...25 mm²flexible without cable endPower circuit: EverLink BTR screw connectors 1 cable(s) 1...35 mm²flexible with cable endPower circuit: EverLink BTR screw connectors 2 cable(s) 1...25 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²solidControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²solidControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²flexible without cable end |
| Tightening torque: | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25...35 mm² hexagonal screw head 4 mmPower circuit: 5 N.m - on EverLink BTR screw connectors - cable 1...25 mm² hexagonal screw head 4 mmPower circuit: 5 N.m - with screwdriver pozidriv No 2Control circuit: 1.7 N.m - with screwdriver pozidriv No 2 |
| Operating time: | 55...65 ms closing20...120 ms opening (date code >= 17221)20...80 ms opening (date code >= 18011) |
| Safety reliability level: | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability: | 6 Mcycles |
| Maximum operating rate: | 3600 cyc/h 60 °C |
| Coil technology: | Built-in bidirectional peak limiting |
|---|---|
| Control circuit voltage limits: | 0.8...1.2 Uc (-40...60 °C):operational DC1...1.2 Uc (60...70 °C):operational DC |
| Inrush power in W: | 11 W at 20 °C |
| Hold-in power consumption in W: | 0.5 W at 20 °C |
| Heat dissipation: | 0.5 W |
| Auxiliary contacts type: | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Signalling circuit frequency: | 25...400 Hz |
| Minimum switching current: | 5 mA for signalling circuit |
| Minimum switching voltage: | 17 V for signalling circuit |
| Non-overlap time: | 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact |
| Insulation resistance: | > 10 MOhm for signalling circuit |
| Compatibility code: | LC1D |
| IP degree of protection: | IP20 front face conforming to IEC 60529 |
|---|---|
| Protective treatment: | TH conforming to IEC 60068-2-30 |
| Pollution degree: | 3 |
| Ambient air temperature for operation: | -40...60 °C60...70 °C with derating |
| Ambient air temperature for storage: | -60...80 °C |
| Operating altitude: | 0...3000 m |
| Fire resistance: | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance: | V1 conforming to UL 94 |
| Mechanical robustness: | Vibrations contactor open: 2 Gn, 5...300 HzVibrations contactor closed: 4 Gn, 5...300 HzShocks contactor open: 10 Gn for 11 msShocks contactor closed: 15 Gn for 11 ms |
| Height: | 122 mm |
| Width: | 55 mm |
| Depth: | 120 mm |
| Product weight: | 0.992 kg |
| Colour: | Grey (SE GREY 6)Green (SE GREEN 2) |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480987816 |
|---|
