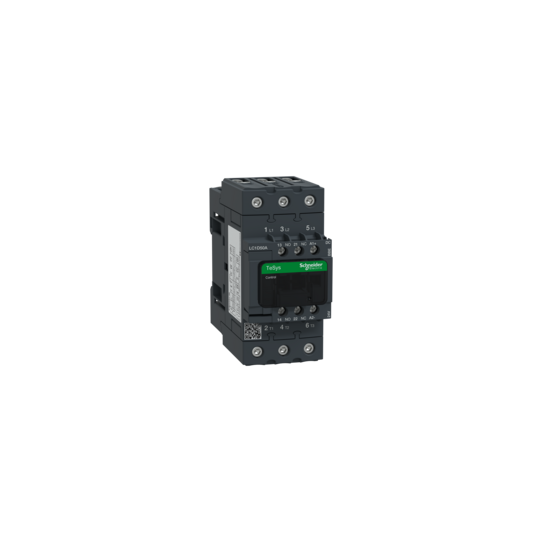

TeSys D contactor - 3P - <= 440 V - 50 A AC-3 - 24 V DC coil - LC1D50ABBE
SKU : LC1D50ABBE
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys D contactor - 3P - <= 440 V - 50 A AC-3 - 24 V DC coil - LC1D50ABBE
DESCRIPTION
| Range of product: | TeSys DTeSys Deca |
|---|---|
| Range: | TeSysTeSys Deca |
| Product name: | TeSys D GreenTeSys Deca |
| Product or component type: | Contactor |
| Device short name: | LC1D |
| Contactor application: | Resistive loadMotor control |
| Utilisation category: | AC-1AC-3AC-3e |
| Poles description: | 3P |
| Pole contact composition: | 3 NO |
| [Ue] rated operational voltage: | Power circuit: |
| [Ie] rated operational current: | 80 A (at 50 A (at 50 A (at |
| Motor power kW: | 15 kW at 220...230 V AC 50 Hz (AC-3)22 kW at 380...400 V AC 50 Hz (AC-3)25 kW at 415 V AC 50 Hz (AC-3)30 kW at 440 V AC 50 Hz (AC-3)30 kW at 500 V AC 50 Hz (AC-3)33 kW at 660...690 V AC 50 Hz (AC-3)15 kW at 220...230 V AC 50 Hz (AC-3e)22 kW at 380...400 V AC 50 Hz (AC-3e)25 kW at 415 V AC 50 Hz (AC-3e)30 kW at 440 V AC 50 Hz (AC-3e)30 kW at 500 V AC 50 Hz (AC-3e)33 kW at 660...690 V AC 50 Hz (AC-3e) |
| Motor power hp: | 3 hp at 115 V AC 60 Hz for 1 phase motors7.5 hp at 230/240 V AC 60 Hz for 1 phase motors15 hp at 200/208 V AC 60 Hz for 3 phases motors15 hp at 230/240 V AC 60 Hz for 3 phases motors40 hp at 460/480 V AC 60 Hz for 3 phases motors40 hp at 575/600 V AC 60 Hz for 3 phases motors |
| Control circuit type: | DC DC low consumption |
| [Uc] control circuit voltage: | 24 V DC |
| Coil type: | DC low consumption |
| Auxiliary contact composition: | 1 NO + 1 NC |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947 |
| Overvoltage category: | III |
| [Ith] conventional free air thermal current: | 80 A (at 60 °C) for power circuit10 A (at 60 °C) for signalling circuit |
| Irms rated making capacity: | 900 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity: | 900 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current: | 100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit84 A 40 °C - 10 min for power circuit208 A 40 °C - 1 min for power circuit400 A 40 °C - 10 s for power circuit810 A 40 °C - 1 s for power circuit |
| Associated fuse rating: | 10 A gG for signalling circuit conforming to IEC 60947-5-1100 A gG at 100 A gG at |
| Average impedance: | 1.5 mOhm - Ith 80 A 50 Hz for power circuit |
| [Ui] rated insulation voltage: | Power circuit: 690 V conforming to IEC 60947-4-1Signalling circuit: 690 V conforming to IEC 60947-1 |
| Electrical durability: | 1.8 Mcycles 42 A AC-3 at Ue 0.5 Mcycles 80 A AC-1 at Ue 1.8 Mcycles 42 A AC-3e at Ue |
| Power dissipation per pole: | 9.6 W AC-13.7 W AC-33.7 W AC-3e |
| Protective cover: | With |
| Mounting support: | PlateRail |
| Standards: | EN/IEC 60947-4-1EN/IEC 60947-5-1UL 60947-4-1CSA C22.2 No 60947-4-1IEC 60335-1 |
| Product certifications: | CCCCSAEACULKCDNV-GLLROS (Lloyds register of shipping)UKCA |
| Connections - terminals: | Control circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²solidControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²solidPower circuit: EverLink BTR screw connectors 1 cable(s) 1...35 mm²flexible without cable endPower circuit: EverLink BTR screw connectors 1 cable(s) 1...35 mm²flexible with cable endPower circuit: EverLink BTR screw connectors 1 cable(s) 1...35 mm²solidPower circuit: EverLink BTR screw connectors 2 cable(s) 1...25 mm²flexible without cable endPower circuit: EverLink BTR screw connectors 2 cable(s) 1...25 mm²flexible with cable endPower circuit: EverLink BTR screw connectors 2 cable(s) 1...25 mm²solid |
| Tightening torque: | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25...35 mm² hexagonal screw head 4 mmPower circuit: 5 N.m - on EverLink BTR screw connectors - cable 1...25 mm² hexagonal screw head 4 mmPower circuit: 5 N.m - with screwdriver pozidriv No 2Control circuit: 1.7 N.m - with screwdriver pozidriv No 2 |
| Operating time: | 55...65 ms closing20...120 ms opening (date code >= 17221)20...80 ms opening (date code >= 18011) |
| Safety reliability level: | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability: | 6 Mcycles |
| Maximum operating rate: | 3600 cyc/h 60 °C |
| Coil technology: | Built-in bidirectional peak limiting |
|---|---|
| Control circuit voltage limits: | 0.8...1.2 Uc (-40...60 °C):operational DC1...1.2 Uc (60...70 °C):operational DC |
| Inrush power in W: | 11 W at 20 °C |
| Hold-in power consumption in W: | 0.5 W at 20 °C |
| Heat dissipation: | 0.5 W |
| Auxiliary contacts type: | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Signalling circuit frequency: | 25...400 Hz |
| Minimum switching current: | 5 mA for signalling circuit |
| Minimum switching voltage: | 17 V for signalling circuit |
| Non-overlap time: | 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact |
| Insulation resistance: | > 10 MOhm for signalling circuit |
| Compatibility code: | LC1D |
| IP degree of protection: | IP20 front face conforming to IEC 60529 |
|---|---|
| Protective treatment: | TH conforming to IEC 60068-2-30 |
| Pollution degree: | 3 |
| Ambient air temperature for operation: | -40...60 °C60...70 °C with derating |
| Ambient air temperature for storage: | -60...80 °C |
| Operating altitude: | 0...3000 m |
| Fire resistance: | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance: | V1 conforming to UL 94 |
| Mechanical robustness: | Vibrations contactor open: 2 Gn, 5...300 HzVibrations contactor closed: 4 Gn, 5...300 HzShocks contactor open: 10 Gn for 11 msShocks contactor closed: 15 Gn for 11 ms |
| Height: | 122 mm |
| Width: | 55 mm |
| Depth: | 120 mm |
| Product weight: | 0.997 kg |
| Colour: | Grey (SE GREY 6)Green (SE GREEN 2) |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480987823 |
|---|
