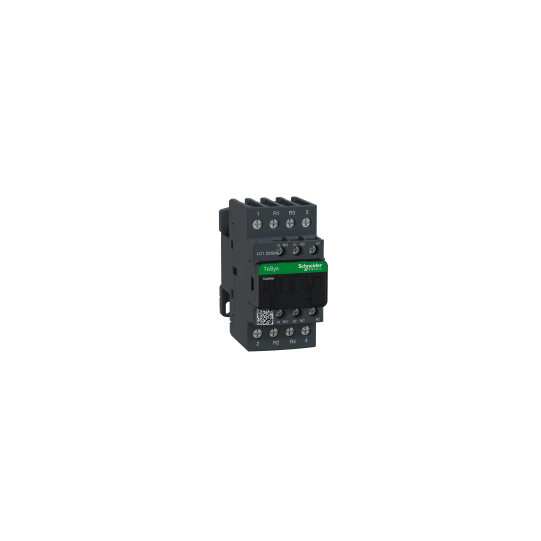

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 40 A - 240 V AC coil - LC1D258U7
DESCRIPTION
| Range of product: | TeSys Deca |
|---|---|
| Product or component type: | Contactor |
| Device short name: | LC1D |
| Contactor application: | Resistive load |
| Utilisation category: | AC-1AC-3AC-3eAC-4 |
| Poles description: | 4P |
| [Ue] rated operational voltage: | Power circuit: |
| [Ie] rated operational current: | 40 A (at |
| [Uc] control circuit voltage: | 240 V AC 50/60 Hz |
| Compatibility code: | LC1D |
|---|---|
| Pole contact composition: | 2 NO + 2 NC |
| Contact compatibility: | M6 |
| Protective cover: | With |
| [Ith] conventional free air thermal current: | 10 A (at 60 °C) for signalling circuit40 A (at 60 °C) for power circuit |
| Irms rated making capacity: | 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1450 A at 440 V for power circuit conforming to IEC 60947 |
| Rated breaking capacity: | 450 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current: | 240 A 40 °C - 10 s for power circuit380 A 40 °C - 1 s for power circuit50 A 40 °C - 10 min for power circuit120 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit |
| Associated fuse rating: | 10 A gG for signalling circuit conforming to IEC 60947-5-163 A gG at 40 A gG at |
| Average impedance: | 2 mOhm - Ith 40 A 50 Hz for power circuit |
| Power dissipation per pole: | 3.2 W AC-1 |
| [Ui] rated insulation voltage: | Power circuit: 690 V conforming to IEC 60947-4-1Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certified |
| Overvoltage category: | III |
| Pollution degree: | 3 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947 |
| Safety reliability level: | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability: | 15 Mcycles |
| Electrical durability: | 1.4 Mcycles 40 A AC-1 at Ue |
| Control circuit type: | AC at 50/60 Hz |
| Coil technology: | Without built-in suppressor module |
| Control circuit voltage limits: | 0.3...0.6 Uc (-40...60 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40...60 °C):operational AC 50 Hz0.85...1.1 Uc (-40...60 °C):operational AC 60 Hz |
| Inrush power in VA: | 70 VA 60 Hz cos phi 0.75 (at 20 °C)70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA: | 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation: | 2...3 W at 50/60 Hz |
| Operating time: | 12...22 ms closing4...19 ms opening |
| Maximum operating rate: | 3600 cyc/h 60 °C |
| Connections - terminals: | Control circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: flexible with cable endControl circuit: screw clamp terminals 2 1...2.5 mm² - cable stiffness: flexible with cable endControl circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: solid without cable endControl circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: solid without cable endPower circuit: screw clamp terminals 1 2.5...10 mm² - cable stiffness: flexible without cable endPower circuit: screw clamp terminals 2 2.5...10 mm² - cable stiffness: flexible without cable endPower circuit: screw clamp terminals 1 2.5...10 mm² - cable stiffness: flexible with cable endPower circuit: screw clamp terminals 2 2.5...10 mm² - cable stiffness: flexible with cable endPower circuit: screw clamp terminals 1 2.5...16 mm² - cable stiffness: solid without cable endPower circuit: screw clamp terminals 2 2.5...16 mm² - cable stiffness: solid without cable end |
| Tightening torque: | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 1.8 N.m - on screw clamps terminals - with screwdriver flat Ø 6 mmPower circuit: 1.8 N.m - on screw clamps terminals - with screwdriver Philips No 2Power circuit: 1.8 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Auxiliary contact composition: | 1 NO + 1 NC |
| Auxiliary contacts type: | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Signalling circuit frequency: | 25...400 Hz |
| Minimum switching voltage: | 17 V for signalling circuit |
| Minimum switching current: | 5 mA for signalling circuit |
| Insulation resistance: | > 10 MOhm for signalling circuit |
| Non-overlap time: | 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact |
| Mounting support: | PlateRail |
| Standards: | EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 60947-4-1UL 60947-5-1CSA C22.2 No 60947-4-1CSA C22.2 No 60947-5-1GB/T 14048.4 |
|---|---|
| Product certifications: | ULCSACCCEACUKCACBEU-RO-MR by DNV-GL |
| IP degree of protection: | IP20 front face conforming to IEC 60529 |
| Protective treatment: | TH conforming to IEC 60068-2-30 |
| Climatic withstand: | conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Permissible ambient air temperature around the device: | -40...60 °C60...70 °C with derating |
| Operating altitude: | 0...3000 m |
| Fire resistance: | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance: | V1 conforming to UL 94 |
| Mechanical robustness: | Vibrations contactor open (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) Shocks contactor closed (15 Gn for 11 ms) Shocks contactor open (8 Gn for 11 ms) |
| Height: | 91 mm |
| Width: | 45 mm |
| Depth: | 99 mm |
| Net weight: | 0.425 kg |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110294439 |
|---|
