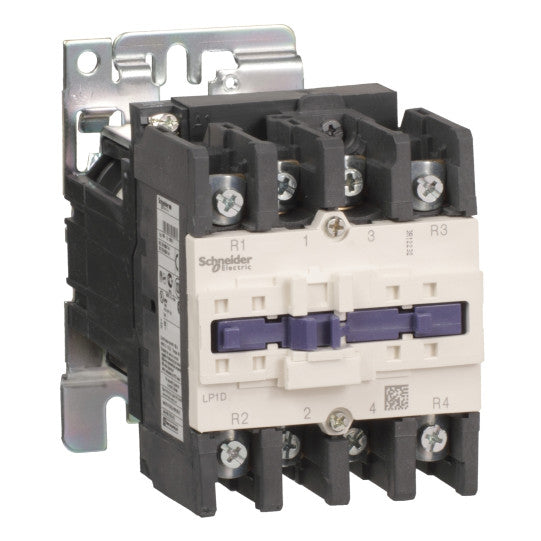

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 24 V DC coil - LP1D80004BD
DESCRIPTION
| Range of product: | TeSys D |
|---|---|
| Range: | TeSys |
| Product name: | TeSys D |
| Product or component type: | Contactor |
| Device short name: | LP1D |
| Contactor application: | Resistive load |
| Utilisation category: | AC-1 |
| Poles description: | 4P |
| Pole contact composition: | 4 NO |
| [Ue] rated operational voltage: | Power circuit: Power circuit: |
| [Ie] rated operational current: | 125 A (at |
| Control circuit type: | DC DC standard |
| [Uc] control circuit voltage: | 24 V DC |
| Coil type: | DC standard |
| [Uimp] rated impulse withstand voltage: | 8 kV conforming to IEC 60947 |
| Overvoltage category: | III |
| [Ith] conventional free air thermal current: | 125 A (at 60 °C) for power circuit |
| Irms rated making capacity: | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| Rated breaking capacity: | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current: | 135 A 40 °C - 10 min for power circuit320 A 40 °C - 1 min for power circuit640 A 40 °C - 10 s for power circuit990 A 40 °C - 1 s for power circuit |
| Associated fuse rating: | 200 A gG at 160 A gG at |
| Average impedance: | 0.8 mOhm - Ith 125 A 50 Hz for power circuit |
| [Ui] rated insulation voltage: | Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedPower circuit: 1000 V conforming to IEC 60947-4-1 |
| Electrical durability: | 0.8 Mcycles 125 A AC-1 at Ue |
| Power dissipation per pole: | 12.5 W AC-1 |
| Protective cover: | Without |
| Mounting support: | RailPlate |
| Standards: | CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508 |
| Product certifications: | BVCCCCSADNVEACGLLROS (Lloyds register of shipping)ULUKCA |
| Connections - terminals: | Control circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²solidControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²solidPower circuit: connector 1 cable(s) 4...50 mm²flexible without cable endPower circuit: connector 2 cable(s) 4...25 mm²flexible without cable endPower circuit: connector 1 cable(s) 4...50 mm²flexible with cable endPower circuit: connector 2 cable(s) 4...16 mm²flexible with cable endPower circuit: connector 1 cable(s) 4...50 mm²solidPower circuit: connector 2 cable(s) 4...25 mm²solidControl circuit: screw clamp terminals 1 cable(s) 1...2.5 mm²flexible with cable end |
| Tightening torque: | Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mmPower circuit: 12 N.m - on connector hexagonal screw head 4 mm |
| Operating time: | 6...20 ms opening20...35 ms closing |
| Safety reliability level: | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability: | 4 Mcycles |
| Maximum operating rate: | 3600 cyc/h 60 °C |
| Coil technology: | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits: | 0.1...0.3 Uc (-40...70 °C):drop-out DC0.85...1.1 Uc (-40...55 °C):operational DC1...1.1 Uc (55...70 °C):operational DC |
| Time constant: | 75 ms |
| Inrush power in W: | 22 W at 20 °C |
| Hold-in power consumption in W: | 22 W at 20 °C |
| Contact compatibility: | M4 |
| Compatibility code: | LP1D |
| IP degree of protection: | IP20 front face conforming to IEC 60529 |
|---|---|
| Protective treatment: | TH conforming to IEC 60068-2-30 |
| Pollution degree: | 3 |
| Ambient air temperature for operation: | -40...60 °C60...70 °C with derating |
| Ambient air temperature for storage: | -60...80 °C |
| Operating altitude: | 0...3000 m |
| Fire resistance: | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance: | V1 conforming to UL 94 |
| Mechanical robustness: | Vibrations contactor open: 2 Gn, 5...300 HzVibrations contactor closed: 3 Gn, 5...300 HzShocks contactor open: 8 Gn for 11 msShocks contactor closed: 10 Gn for 11 ms |
| Height: | 127 mm |
| Width: | 96 mm |
| Depth: | 181 mm |
| Product weight: | 2.685 kg |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110234312 |
|---|
