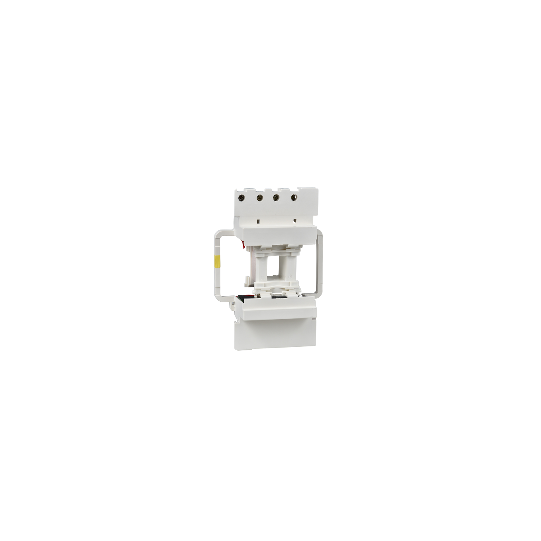

TeSys D - contactor coil - LX1D8 - 230 V AC 50/60 Hz for 115 & 150 A contactor - LX1D8P7
DESCRIPTION
| Range of product: | TeSys D |
|---|---|
| Range: | TeSys |
| Product or component type: | Contactor coil |
| Device short name: | LX1D8 |
| Control circuit type: | AC at 50/60 Hz |
| [Uc] control circuit voltage: | 230 V AC 50/60 Hz |
| Average resistance: | 9895 Ohm at 20 °C |
| Inductance of closed circuit: | 210.72 H |
| Product compatibility: | LC1D150LC1D115 |
| Mechanical durability: | 8 Mcycles |
| Maximum operating rate: | 1200 cyc/h 60 °C |
| Coil technology: | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits: | Drop-out: 0.3...0.5 Uc at 50/60 Hz (at Operational: 0.8...1.15 Uc at 50/60 Hz (at |
| Inrush power in VA: | 280...350 VA 60 Hz cos phi 0.9 (at 20 °C)280...350 VA 50 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA: | 2...18 VA 60 Hz cos phi 0.9 (at 20 °C)2...18 VA 50 Hz cos phi 0.9 (at 20 °C) |
| Heat dissipation: | 3...4.5 W at 50/60 Hz |
| Ambient air temperature for operation: | -5...60 °C |
|---|
| Code EAN: | 3389110868395 |
|---|
