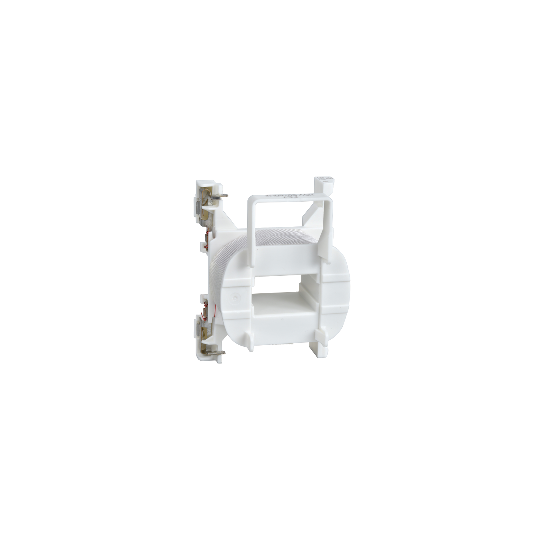

TeSys D - contactor coil - LXD1 - 380 V AC 50/60 Hz for 9… 38 A contactor - LXD1Q7
SKU : LXD1Q7
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys D - contactor coil - LXD1 - 380 V AC 50/60 Hz for 9… 38 A contactor - LXD1Q7
DESCRIPTION
| Range of product: | TeSys DTeSys D control relay |
|---|---|
| Range: | TeSys |
| Product or component type: | Contactor coil |
| Device short name: | LXD1 |
| Control circuit type: | AC at 50/60 Hz |
| [Uc] control circuit voltage: | 380 V AC 50/60 Hz |
| Average resistance: | 1551 Ohm at 20 °C |
| Inductance of closed circuit: | 55 H |
| Product compatibility: | LC1DT20...DT40CADLC1D09...D38 |
| Mechanical durability: | 9 Mcycles |
| Maximum operating rate: | 3600 cyc/h 60 °C |
| Coil technology: | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits: | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at Operational: 0.8...1.1 Uc at 50 Hz (at Operational: 0.85...1.1 Uc at 60 Hz (at |
| Inrush power in VA: | 70 VA 60 Hz cos phi 0.75 (at 20 °C)70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA: | 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation: | 2...3 W at 50/60 Hz |
| Ambient air temperature for operation: | -5...60 °C |
|---|---|
| Product weight: | 0.07 kg |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3389110467925 |
|---|
