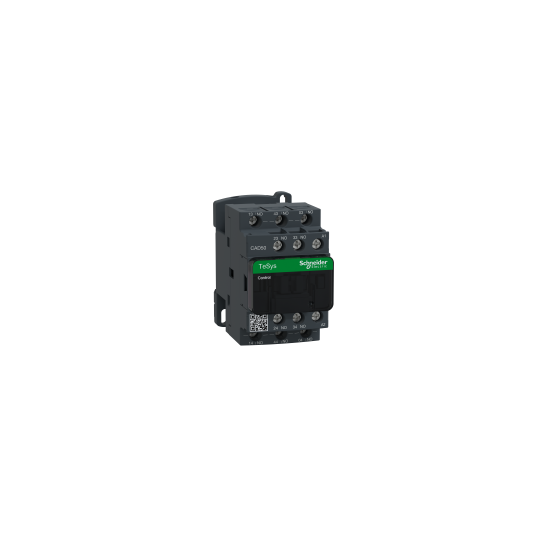

TeSys D control relay - 5 NO - <= 690 V - 380 V AC standard coil - CAD50Q7
DESCRIPTION
| Range: | TeSysTeSys Deca |
|---|---|
| Range of product: | TeSys D control relay |
| Product name: | TeSys CAD |
| Product or component type: | Control relay |
| Device short name: | CAD |
| Contactor application: | Control circuit |
| Utilisation category: | AC-15AC-14DC-13 |
|---|---|
| Pole contact composition: | 5 NO |
| [Ue] rated operational voltage: | |
| Control circuit type: | AC at 50/60 Hz |
| [Uc] control circuit voltage: | 380 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947 |
| [Ith] conventional free air thermal current: | 10 A (at 60 °C) |
| Irms rated making capacity: | 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 |
| [Icw] rated short-time withstand current: | 100 A - 1 s120 A - 500 ms140 A - 100 ms |
| Associated fuse rating: | 10 A gG conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 600 V UL certified600 V CSA certified690 V conforming to IEC 60947-5-1 |
| Mounting support: | RailPlate |
| Connections - terminals: | Screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1...4 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1...4 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1...4 mm²solid without cable endScrew clamp terminals 2 cable(s) 1...4 mm²solid without cable end |
| Tightening torque: | 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 21.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Control circuit voltage limits: | 0.3...0.6 Uc (-40...70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40...60 °C):operational AC 50 Hz0.85...1.1 Uc (-40...60 °C):operational AC 60 Hz1...1.1 Uc (60...70 °C):operational AC 50/60 Hz |
| Operating time: | 12...22 ms coil energisation and NO closing4...12 ms coil de-energisation and NO opening |
| Mechanical durability: | 30 Mcycles |
| Maximum operating rate: | 180 cyc/mn |
| Inrush power in VA: | 70 VA 50 Hz (at 20 °C) |
| Hold-in power consumption in VA: | 8 VA 50 Hz (at 20 °C) |
| Minimum switching voltage: | 17 V |
| Minimum switching current: | 5 mA |
| Non-overlap time: | 1.5 ms on energisation between NC and NO contact1.5 ms on de-energisation between NC and NO contact |
| Insulation resistance: | > 10 MOhm |
| Mechanical robustness: | Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Height: | 77 mm |
| Width: | 45 mm |
| Depth: | 84 mm |
| Net weight: | 0.58 kg |
| Compatibility code: | CAD |
| Standards: | EN/IEC 60947-5-1GB/T 14048.5UL 60947-5-1CSA C22.2 No 60947-5-1JIS C8201-5-1 |
|---|---|
| Product certifications: | CB SchemeCCCULCSAEACCEUKCA |
| IP degree of protection: | IP2X front face conforming to VDE 0106 |
| Protective treatment: | TH conforming to IEC 60068 |
| Ambient air temperature for operation: | -40...60 °C60...70 °C with derating |
| Ambient air temperature for storage: | -60...80 °C |
| Operating altitude: | 0...3000 m |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110403350 |
|---|
