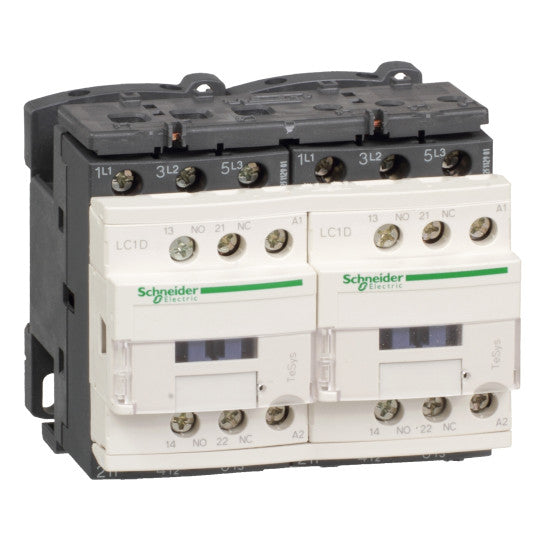

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 24 V DC coil - LC2D12BLV
SKU : LC2D12BLV
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 24 V DC coil - LC2D12BLV
DESCRIPTION
| Range of product: | TeSys DTeSys Deca |
|---|---|
| Range: | TeSysTeSys Deca |
| Product name: | TeSys DTeSys Deca |
| Product or component type: | Reversing contactor |
| Device short name: | LC2D |
| Contactor application: | Resistive loadMotor control |
| Utilisation category: | AC-3AC-1 |
| Device presentation: | Preassembled with reversing power busbar |
| Poles description: | 3P |
| Pole contact composition: | 3 NO |
| [Ue] rated operational voltage: | Power circuit: Power circuit: |
| [Ie] rated operational current: | 25 A (at 12 A (at |
| Motor power kW: | 3 kW at 220...230 V AC 50 Hz5.5 kW at 380...400 V AC 50 Hz5.5 kW at 415...440 V AC 50 Hz7.5 kW at 500 V AC 50 Hz7.5 kW at 660...690 V AC 50 Hz |
| Motor power hp: | 1 hp at 115 V AC 60 Hz for 1 phase motors2 hp at 230/240 V AC 60 Hz for 1 phase motors3 hp at 200/208 V AC 60 Hz for 3 phases motors3 hp at 230/240 V AC 60 Hz for 3 phases motors7.5 hp at 460/480 V AC 60 Hz for 3 phases motors10 hp at 575/600 V AC 60 Hz for 3 phases motors |
| Control circuit type: | DC low consumption |
| [Uc] control circuit voltage: | 24 V DC |
| Auxiliary contact composition: | 1 NO + 1 NC |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947 |
| Overvoltage category: | III |
| [Ith] conventional free air thermal current: | 10 A (at 60 °C) for signalling circuit25 A (at 60 °C) for power circuit |
| Irms rated making capacity: | 250 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity: | 250 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current: | 30 A 40 °C - 10 min for power circuit61 A 40 °C - 1 min for power circuit105 A 40 °C - 10 s for power circuit210 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit |
| Associated fuse rating: | 10 A gG for signalling circuit conforming to IEC 60947-5-140 A gG at 25 A gG at |
| Average impedance: | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| [Ui] rated insulation voltage: | Power circuit: 690 V conforming to IEC 60947-4-1Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certified |
| Electrical durability: | 2 Mcycles 12 A AC-3 at Ue 0.8 Mcycles 25 A AC-1 at Ue |
| Power dissipation per pole: | 1.56 W AC-10.36 W AC-3 |
| Protective cover: | With |
| Interlocking type: | Electrical and mechanical |
| Mounting support: | RailPlate |
| Standards: | CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508IEC 60335-1 |
| Product certifications: | DNVCSACCCULGLLROS (Lloyds register of shipping)BVRINAGOSTUKCA |
| Connections - terminals: | Power circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable endPower circuit: screw clamp terminals 2 cable(s) 1...4 mm²flexible without cable endPower circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible with cable endPower circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable endPower circuit: screw clamp terminals 1 cable(s) 1...4 mm²solidPower circuit: screw clamp terminals 2 cable(s) 1...4 mm²solidControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²solidControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²solid |
| Tightening torque: | Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmPower circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Operating time: | 65.45...88.55 ms closing20...30 ms opening |
| Safety reliability level: | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability: | 30 Mcycles |
| Maximum operating rate: | 3600 cyc/h 60 °C |
| Coil technology: | Built-in bidirectional peak limiting diode suppressor |
|---|---|
| Control circuit voltage limits: | 0.1...0.3 Uc (-40...70 °C):drop-out DC0.8...1.25 Uc (-40...60 °C):operational DC1...1.25 Uc (60...70 °C):operational DC |
| Time constant: | 40 ms |
| Inrush power in W: | 2.4 W (at 20 °C) |
| Hold-in power consumption in W: | 2.4 W at 20 °C |
| Auxiliary contacts type: | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Signalling circuit frequency: | 25...400 Hz |
| Minimum switching current: | 5 mA for signalling circuit |
| Minimum switching voltage: | 17 V for signalling circuit |
| Non-overlap time: | 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact |
| Insulation resistance: | > 10 MOhm for signalling circuit |
| Contact compatibility: | M5 |
| Compatibility code: | LC2D |
| IP degree of protection: | IP20 front face conforming to IEC 60529 |
|---|---|
| Protective treatment: | TH conforming to IEC 60068-2-30 |
| Pollution degree: | 3 |
| Ambient air temperature for operation: | -40...60 °C60...70 °C with derating |
| Ambient air temperature for storage: | -60...80 °C |
| Operating altitude: | 0...3000 m |
| Fire resistance: | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance: | V1 conforming to UL 94 |
| Mechanical robustness: | Vibrations contactor open: 2 Gn, 5...300 HzVibrations contactor closed: 4 Gn, 5...300 HzShocks contactor open: 10 Gn for 11 msShocks contactor closed: 15 Gn for 11 ms |
| Height: | 77 mm |
| Width: | 90 mm |
| Depth: | 95 mm |
| Product weight: | 1.027 kg |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110415544 |
|---|
