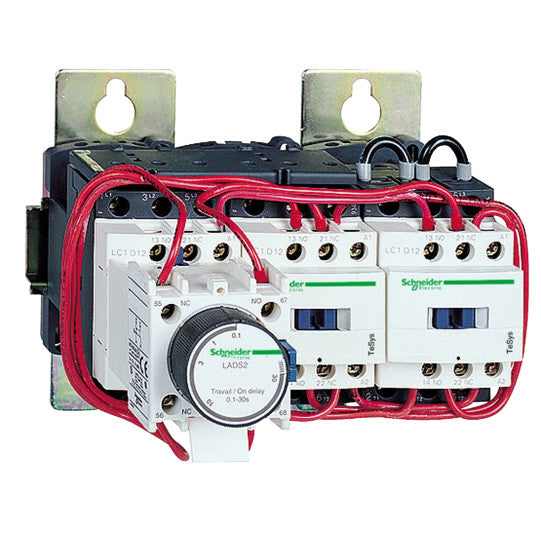

TeSys D - star delta starter - 3 x 3P (3 NO) - 115 A - 230 V AC coil - LC3D115P7A64
DESCRIPTION
| Range of product: | TeSys D |
|---|---|
| Range: | TeSys |
| Product name: | TeSys D |
| Product or component type: | Star delta starter |
| Device short name: | LC3D |
| Contactor application: | Motor control |
| Utilisation category: | AC-3 |
| Device presentation: | Pre-wired |
| Poles description: | 3 x 3P |
| Pole contact composition: | 3 x 3 NO |
| [Ue] rated operational voltage: | Power circuit: |
| [Ie] rated operational current: | 115 A (at |
| Motor power kW: | 110 kW at 380/400 V AC 50/60 Hz110 kW at 415 V AC 50/60 Hz110 kW at 440 V AC 50/60 Hz63 kW at 220/230 V AC 50/60 Hz |
| Control circuit type: | AC at 50/60 Hz |
| [Uc] control circuit voltage: | 230 V AC 50/60 Hz |
| Auxiliary contact composition: | 1 NC for KM2 line contactor1 NO for KM3 delta contactor |
| [Uimp] rated impulse withstand voltage: | 8 kV conforming to IEC 60947 |
| Overvoltage category: | III |
| [Ui] rated insulation voltage: | Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certifiedPower circuit: 1000 V conforming to IEC 60947-4-1Signalling circuit: 1000 V conforming to IEC 60947-1 |
| Electrical durability: | 0.95 Mcycles 115 A AC-3 at Ue |
| Interlocking type: | Mechanical |
| Mounting support: | Plate |
| Standards: | IEC 60947-5-1CSA C22.2 No 14EN 60947-5-1UL 508EN 60947-4-1IEC 60947-4-1 |
| Product certifications: | CSABVGLCCCGOSTULDNVLROS (Lloyds register of shipping)RINA |
| Connections - terminals: | Power circuit: connector 1 10...120 mm² - cable stiffness: flexible without cable endPower circuit: connector 2 10...50 mm² - cable stiffness: flexible without cable endPower circuit: connector 1 10...120 mm² - cable stiffness: flexible with cable endPower circuit: connector 2 10...50 mm² - cable stiffness: flexible with cable endPower circuit: connector 1 10...120 mm² - cable stiffness: solid without cable endPower circuit: connector 2 10...50 mm² - cable stiffness: solid without cable endControl circuit: connector 1 1...2.5 mm² - cable stiffness: flexible without cable endControl circuit: connector 2 1...2.5 mm² - cable stiffness: flexible without cable endControl circuit: connector 1 1...2.5 mm² - cable stiffness: flexible with cable endControl circuit: connector 2 1...2.5 mm² - cable stiffness: flexible with cable endControl circuit: connector 1 1...2.5 mm² - cable stiffness: solid without cable endControl circuit: connector 2 1...2.5 mm² - cable stiffness: solid without cable end |
|---|---|
| Tightening torque: | Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6...8 mmControl circuit: 1.2 N.m - on connector - with screwdriver flat Ø 6 mmControl circuit: 1.2 N.m - on connector - with screwdriver Philips No 2 |
| Mechanical durability: | 8 Mcycles |
| Maximum operating rate: | 30 cyc/h 60 °C |
| Starting time: | 30 s |
| Coil technology: | Without built-in suppressor module |
| Control circuit voltage limits: | Drop-out: 0.3...0.5 Uc at 50/60 Hz (at Operational: 0.8...1.15 Uc at 50/60 Hz (at |
| Inrush power in VA: | 280...350 VA 60 Hz cos phi 0.8 (at 20 °C)280...350 VA 50 Hz cos phi 0.8 (at 20 °C) |
| Hold-in power consumption in VA: | 2...18 VA 60 Hz cos phi 0.3 (at 20 °C)2...18 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation: | 3...8 W at 50/60 Hz |
| Auxiliary contacts type: | Mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NCMirror contact conforming to IEC 60947-4-1 3 x 1 NC |
| Signalling circuit frequency: | 25...400 Hz |
| Minimum switching current: | 5 mA for signalling circuit |
| Switching voltage: | 17 V for signalling circuit |
| Non-overlap time: | 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact |
| Width: | 450 mm |
| Height: | 555 mm |
| Depth: | 205 mm |
| Product weight: | 12.1 kg |
| Insulation resistance: | > 10 MOhm for signalling circuit |
|---|---|
| IP degree of protection: | IP20 front face conforming to IEC 60529 |
| Protective treatment: | TH conforming to IEC 60068-2-30 |
| Pollution degree: | 3 |
| Ambient air temperature for storage: | -60...80 °C |
| Ambient air temperature for operation: | -40...60 °C60...70 °C with derating |
| Operating altitude: | 3000 m |
| Fire resistance: | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance: | V1 conforming to UL 94 |
| Mechanical robustness: | Vibrations contactor open: 2 Gn, 5...300 HzVibrations contactor closed: 4 Gn, 5...300 HzShocks contactor closed: 15 Gn for 11 msShocks contactor open: 6 Gn for 11 ms |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110207804 |
|---|
