TeSys D - star delta starter - 3 x 3P (3 NO) - 80 A - 24 V AC coil - LC3D80B7
SKU : LC3D80B7
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation

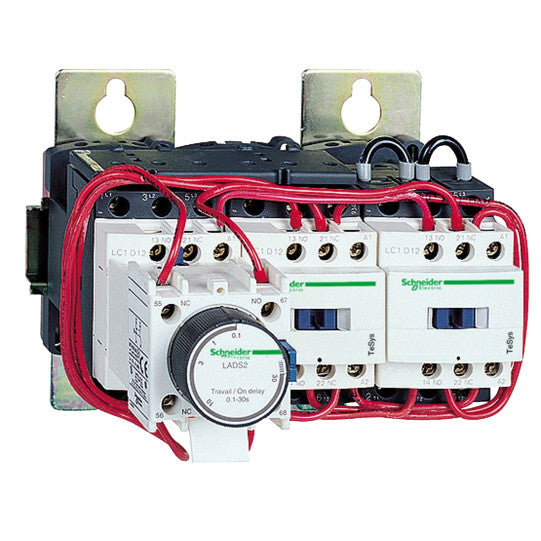

TeSys D - star delta starter - 3 x 3P (3 NO) - 80 A - 24 V AC coil - LC3D80B7
DESCRIPTION
| Range of product: | TeSys D |
|---|---|
| Range: | TeSys |
| Product name: | TeSys D |
| Product or component type: | Star delta starter |
| Device short name: | LC3D |
| Contactor application: | Motor control |
| Utilisation category: | AC-3 |
| Device presentation: | Pre-wired |
| Poles description: | 3 x 3P |
| Pole contact composition: | 3 x 3 NO |
| [Ue] rated operational voltage: | Power circuit: |
| [Ie] rated operational current: | 80 A (at |
| Motor power kW: | 37 kW at 220/230 V AC 50/60 Hz75 kW at 380/400 V AC 50/60 Hz75 kW at 415 V AC 50/60 Hz75 kW at 440 V AC 50/60 Hz |
| Control circuit type: | AC at 50/60 Hz |
| [Uc] control circuit voltage: | 24 V AC 50/60 Hz |
| Auxiliary contact composition: | 1 NC for KM2 line contactor1 NO for KM3 delta contactor |
| [Uimp] rated impulse withstand voltage: | 8 kV conforming to IEC 60947 |
| Overvoltage category: | III |
| [Ui] rated insulation voltage: | Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certifiedPower circuit: 1000 V conforming to IEC 60947-4-1Signalling circuit: 1000 V conforming to IEC 60947-1 |
| Electrical durability: | 10 Mcycles 80 A AC-3 at Ue |
| Mounting support: | Plate |
| Standards: | EN 60947-4-1CSA C22.2 No 14EN 60947-5-1IEC 60947-4-1UL 508IEC 60947-5-1 |
| Product certifications: | GLCCCULGOSTLROS (Lloyds register of shipping)CSADNVRINABV |
| Connections - terminals: | Control circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 2 1...2.5 mm² - cable stiffness: flexible with cable endControl circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: solid without cable endControl circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: solid without cable endPower circuit: screw clamp terminals 1 4...50 mm² - cable stiffness: flexible without cable endPower circuit: screw clamp terminals 2 4...25 mm² - cable stiffness: flexible without cable endPower circuit: screw clamp terminals 1 4...50 mm² - cable stiffness: flexible with cable endPower circuit: screw clamp terminals 2 4...16 mm² - cable stiffness: flexible with cable endPower circuit: screw clamp terminals 1 4...50 mm² - cable stiffness: solid without cable endPower circuit: screw clamp terminals 2 4...25 mm² - cable stiffness: solid without cable endControl circuit: screw clamp terminals 1 1...2.5 mm² - cable stiffness: flexible with cable end |
|---|---|
| Tightening torque: | Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 12 N.m - on screw clamp terminals - with screwdriver flat Ø 6...8 mm |
| Mechanical durability: | 4 Mcycles |
| Maximum operating rate: | 30 cyc/h 60 °C |
| Starting time: | 30 s |
| Coil technology: | Without built-in suppressor module |
| Control circuit voltage limits: | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at Operational: 0.8...1.1 Uc at 50 Hz (at Operational: 0.85...1.1 Uc at 60 Hz (at |
| Inrush power in VA: | 140 VA 60 Hz cos phi 0.75 (at 20 °C)160 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA: | 13 VA 60 Hz cos phi 0.3 (at 20 °C)15 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation: | 4...5 W at 50/60 Hz |
| Auxiliary contacts type: | Mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NCMirror contact conforming to IEC 60947-4-1 3 x 1 NC |
| Signalling circuit frequency: | 25...400 Hz |
| Minimum switching current: | 5 mA for signalling circuit |
| Switching voltage: | 17 V for signalling circuit |
| Non-overlap time: | 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact |
| Width: | 311 mm |
| Height: | 143 mm |
| Depth: | 183 mm |
| Product weight: | 5.2 kg |
| Power range: | 30...50 kW at 200...240 V 3 phases55...100 kW at 380...440 V 3 phases15...25 kW at 200...240 V 3 phases30...50 kW at 380...440 V 3 phases |
| Motor starter type: | Star delta starter |
| Contactor coil voltage: | 24 V AC standard |
| Insulation resistance: | > 10 MOhm for signalling circuit |
|---|---|
| IP degree of protection: | IP20 front face conforming to IEC 60529 |
| Protective treatment: | TH conforming to IEC 60068-2-30 |
| Pollution degree: | 3 |
| Ambient air temperature for storage: | -60...80 °C |
| Ambient air temperature for operation: | -40...60 °C60...70 °C with derating |
| Operating altitude: | 3000 m |
| Fire resistance: | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance: | V1 conforming to UL 94 |
| Mechanical robustness: | Vibrations contactor open: 2 Gn, 5...300 HzShocks contactor open: 8 Gn for 11 msVibrations contactor closed: 3 Gn, 5...300 HzShocks contactor closed: 10 Gn for 11 ms |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110094206 |
|---|
