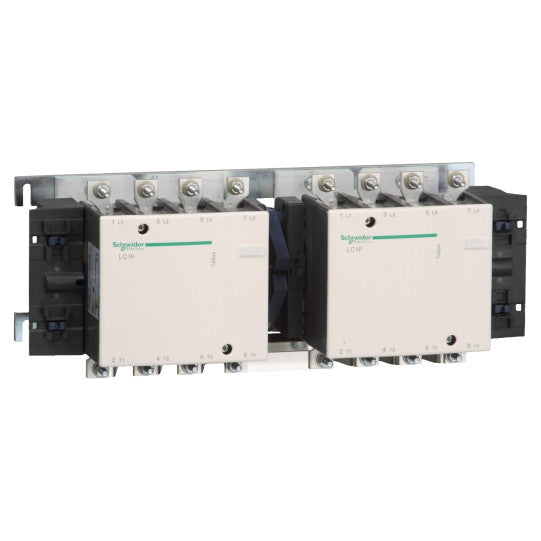

TeSys F changeover contactor - 4P(4 NO) AC-1 <= 440 V 250 A - without coil - LC2F1504
DESCRIPTION
| Range of product: | TeSys F |
|---|---|
| Range: | TeSys |
| Product name: | TeSys F |
| Product or component type: | Changeover contactor |
| Device short name: | LC2F |
| Contactor application: | Resistive load |
| Utilisation category: | AC-1 |
| Device presentation: | Preassembled with reversing power busbar |
| Poles description: | 4P |
| Pole contact composition: | 4 NO |
| [Ue] rated operational voltage: | |
| [Ie] rated operational current: | 250 A (at |
| Auxiliary contact composition: | 1 NO |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| Overvoltage category: | III |
| [Ith] conventional free air thermal current: | 250 A (at 40 °C) |
| Irms rated making capacity: | 1500 A AC conforming to IEC 60947-4-1 |
| Rated breaking capacity: | 1200 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current: | 1200 A 40 °C - 10 s700 A 40 °C - 30 s600 A 40 °C - 1 min450 A 40 °C - 3 min350 A 40 °C - 10 min |
| Associated fuse rating: | 160 A aM at 250 A gG at |
| Average impedance: | 0.35 mOhm - Ith 250 A 50 Hz |
| [Ui] rated insulation voltage: | 1000 V conforming to IEC 60947-4-11500 V conforming to VDE 0110 group C |
| Power dissipation per pole: | 22 W AC-1 |
| Interlocking type: | Mechanical |
| Mounting support: | Plate |
| Standards: | EN 60947-4-1JIS C8201-4-1EN 60947-1IEC 60947-4-1IEC 60947-1 |
| Product certifications: | LROS (Lloyds register of shipping)RINACBABSCCCULRMRoSDNVCSAUKCA |
| Connections - terminals: | Control circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²solid without cable endPower circuit: connector 1 cable(s) 120 mm²Power circuit: lugs-ring terminals 1 cable(s) 120 mm²Power circuit: bar 2 cable(s) - busbar cross section: 25 x 3 mm |
| Tightening torque: | Control circuit: 1.2 N.mPower circuit: 18 N.m |
| Compatibility code: | LC2F |
|---|
| IP degree of protection: | IP2x front face with shrouds conforming to IEC 60529IP2x front face with shrouds conforming to VDE 0106 |
|---|---|
| Protective treatment: | TH |
| Ambient air temperature for operation: | -5...55 °C |
| Ambient air temperature for storage: | -60...80 °C |
| Permissible ambient air temperature around the device: | -40...70 °C |
| Operating altitude: | 3000 m without derating |
| Fire resistance: | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness: | Vibrations contactor open: 2 Gn, 5...300 HzVibrations contactor closed: 6 Gn, 5...300 HzShocks contactor open: 9 Gn for 11 msShocks contactor closed: 15 Gn for 11 ms |
| Height: | 170 mm |
| Width: | 422 mm |
| Depth: | 171 mm |
| Product weight: | 8.86 kg |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110227390 |
|---|
