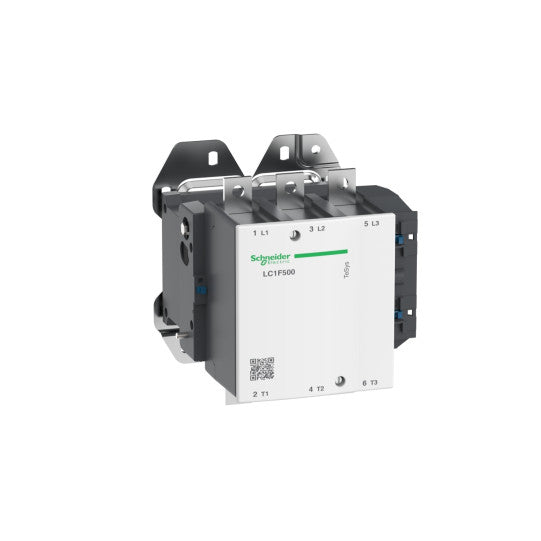

TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 500 A - coil 220 V AC - LC1F500M7
DESCRIPTION
| Range of product: | TeSys F |
|---|---|
| Range: | TeSys |
| Product name: | TeSys F |
| Product or component type: | Contactor |
| Device short name: | LC1F |
| Contactor application: | Motor controlResistive load |
| Utilisation category: | AC-1AC-4AC-3 |
| Poles description: | 3P |
| Pole contact composition: | 3 NO |
| [Ue] rated operational voltage: | |
| [Ie] rated operational current: | 700 A (at 500 A (at |
| Motor power kW: | 250 kW at 380...400 V AC 50/60 Hz (AC-3)280 kW at 415 V AC 50/60 Hz (AC-3)295 kW at 440 V AC 50/60 Hz (AC-3)355 kW at 500 V AC 50/60 Hz (AC-3)335 kW at 660...690 V AC 50/60 Hz (AC-3)335 kW at 1000 V AC 50/60 Hz (AC-3)147 kW at 220...230 V AC 50/60 Hz (AC-3)80 kW at 400 V AC 50/60 Hz (AC-4) |
| Control circuit type: | AC at 40...400 Hz |
| [Uc] control circuit voltage: | 220 V AC 40...400 Hz |
| [Uimp] rated impulse withstand voltage: | 8 kV |
|---|---|
| Overvoltage category: | III |
| [Ith] conventional free air thermal current: | 700 A (at 40 °C) |
| Rated breaking capacity: | 4000 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current: | 4200 A 40 °C - 10 s3200 A 40 °C - 30 s2400 A 40 °C - 1 min1500 A 40 °C - 3 min1200 A 40 °C - 10 min |
| Associated fuse rating: | 500 A aM at 800 A gG at |
| Average impedance: | 0.18 mOhm - Ith 700 A 50 Hz |
| [Ui] rated insulation voltage: | 1000 V conforming to IEC 60947-4-11500 V conforming to VDE 0110 group C |
| Power dissipation per pole: | 88 W AC-145 W AC-3 |
| Mounting support: | Plate |
| Standards: | EN 60947-4-1IEC 60947-1EN 60947-1JIS C8201-4-1IEC 60947-4-1 |
| Product certifications: | CSACBRMRoSABSLROS (Lloyds register of shipping)ULRINABVDNVUKCA |
| Connections - terminals: | Control circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²solid without cable endPower circuit: bar 2 cable(s) - busbar cross section: 40 x 5 mmPower circuit: lugs-ring terminals 2 cable(s) 240 mm²Power circuit: bolted connection |
| Tightening torque: | Control circuit: 1.2 N.mPower circuit: 35 N.m |
| Control circuit voltage limits: | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C) |
| Inrush power in VA: | 1100 VA 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA: | 18 VA 40...400 Hz cos phi 0.9 (at 20 °C) |
| Heat dissipation: | 18 W |
| Operating time: | 40...65 ms closing100...170 ms opening |
| Mechanical durability: | 10 Mcycles |
| Maximum operating rate: | 2400 cyc/h 55 °C |
| Compatibility code: | LC1F |
| Power range: | 250...500 kW at 380...440 V 3 phases110...220 kW at 380...440 V 3 phases110...220 kW at 200...240 V 3 phases250...500 kW at 480...500 V 3 phases |
| Motor starter type: | Direct on-line contactor |
| Contactor coil voltage: | 220 V AC standard |
| IP degree of protection: | IP20 front face with shrouds conforming to IEC 60529IP20 front face with shrouds conforming to VDE 0106 |
|---|---|
| Protective treatment: | TH |
| Ambient air temperature for operation: | -5...55 °C |
| Ambient air temperature for storage: | -60...80 °C |
| Permissible ambient air temperature around the device: | -40...70 °C |
| Operating altitude: | 3000 m without derating |
| Height: | 238 mm |
| Width: | 233 mm |
| Depth: | 232 mm |
| Product weight: | 11.35 kg |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110227062 |
|---|---|
| Substitution_texte: | Product not available. Here is the equivalent reference that we offer: LC1G500KUEN - High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 500A, standard version, 100…250V wide band AC/DC coil |
