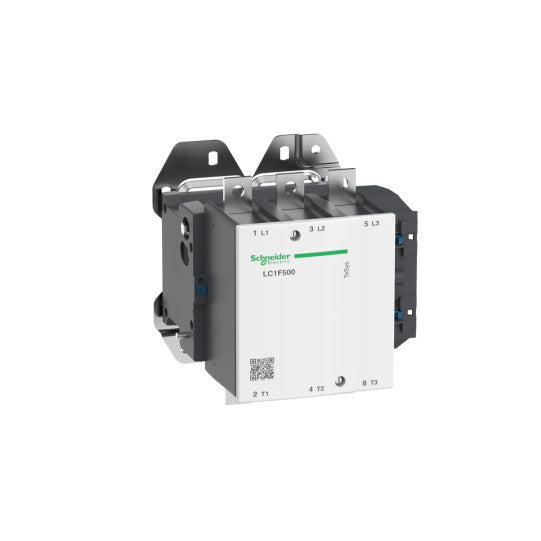

TeSys F contactor - 3P(3 NO)-AC-3 <= 440V 1100A with coil LX1/ LX9 - 48…1000V AC 40/400Hz, LX4 - 48...440V DC - LC1F500
SKU : LC1F500
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys F contactor - 3P(3 NO)-AC-3 <= 440V 1100A with coil LX1/ LX9 - 48…1000V AC 40/400Hz, LX4 - 48...440V DC - LC1F500
DESCRIPTION
| Range of product: | TeSys F |
|---|---|
| Range: | TeSys |
| Product name: | TeSys F |
| Product or component type: | Contactor |
| Device short name: | LC1F |
| Contactor application: | Resistive loadMotor control |
| Utilisation category: | AC-4AC-1AC-3 |
| Poles description: | 3P |
| Pole contact composition: | 3 NO |
| [Ue] rated operational voltage: | |
| [Ie] rated operational current: | 700 A (at 500 A (at |
| Motor power kW: | 250 kW at 380...400 V AC 50/60 Hz (AC-3)280 kW at 415 V AC 50/60 Hz (AC-3)295 kW at 440 V AC 50/60 Hz (AC-3)335 kW at 1000 V AC 50/60 Hz (AC-3)355 kW at 500 V AC 50/60 Hz (AC-3)147 kW at 220...240 V AC 50/60 Hz (AC-3)335 kW at 660...690 V AC 50/60 Hz (AC-3)80 kW at 400 V AC 50/60 Hz (AC-4) |
| [Uc] control circuit voltage: | 48...1000 V AC 40...400 Hz with LX1/LX9 coil48...440 V DC with LX4 coil |
|---|---|
| [Uimp] rated impulse withstand voltage: | 8 kV |
| Overvoltage category: | III |
| [Ith] conventional free air thermal current: | 700 A (at 40 °C) |
| Irms rated making capacity: | 5000 A AC conforming to IEC 60947-4-1 |
| Rated breaking capacity: | 4000 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current: | 4200 A 40 °C - 10 s3200 A 40 °C - 30 s2400 A 40 °C - 1 min1500 A 40 °C - 3 min1200 A 40 °C - 10 min |
| Associated fuse rating: | 500 A aM at 800 A gG at |
| Average impedance: | 0.18 mOhm - Ith 700 A 50 Hz |
| [Ui] rated insulation voltage: | 1000 V conforming to IEC 60947-4-11500 V conforming to VDE 0110 group C |
| Control circuit voltage limits: | Operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coilDrop-out: 0.3...0.5 Uc AC 40...400 Hz with LX1/LX9 coilOperational: 0.85...1.1 Uc DC with LX4 coilDrop-out: 0.2...0.35 Uc DC with LX4 coil |
| Power dissipation per pole: | 88 W AC-145 W AC-3 |
| Heat dissipation: | 18 W |
| Operating time: | 40...75 ms closing for with LX1/LX9 coil100...170 ms opening for with LX1/LX9 coil50...60 ms closing for with LX4 coil45...60 ms opening for with LX4 coil |
| Mounting support: | Plate |
| Standards: | JIS C8201-4-1EN 60947-1IEC 60947-1EN 60947-4-1IEC 60947-4-1 |
| Product certifications: | CSALROS (Lloyds register of shipping)DNVBVABSCBRMRoSRINAULUKCA |
| Connections - terminals: | Power circuit: lugs-ring terminals 2 cable(s) 240 mm²Power circuit: bar 2 cable(s) - busbar cross section: 40 x 5 mmPower circuit: bolted connectionControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²solid without cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²Control circuit: screw clamp terminals 2 cable(s) 1...4 mm² |
| Tightening torque: | Power circuit: 35 N.mControl circuit: 1.2 N.m |
| Mechanical durability: | 10 Mcycles |
| Inrush power in VA: | 1050...1150 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil990...1220 VA (at 20 °C)with LX4 coil |
| Hold-in power consumption in VA: | 16...20 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil4.54...8 VA (at 20 °C)with LX4 coil |
| Maximum operating rate: | 2400 cyc/h 55 °C |
| Compatibility code: | LC1F |
| IP degree of protection: | IP20 front face with shrouds conforming to IEC 60529IP20 front face with shrouds conforming to VDE 0106 |
|---|---|
| Protective treatment: | TH |
| Ambient air temperature for operation: | -5...55 °C |
| Ambient air temperature for storage: | -60...80 °C |
| Permissible ambient air temperature around the device: | -40...70 °C |
| Operating altitude: | 3000 m without derating |
| Mechanical robustness: | Vibrations contactor open: 2 Gn, 5...300 HzVibrations contactor closed: 4 Gn, 5...300 HzShocks contactor open: 9 Gn for 1/2 sine wave (11 ms)Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms) |
| Height: | 238 mm |
| Width: | 233 mm |
| Depth: | 232 mm |
| Product weight: | 9.75 kg |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110122169 |
|---|
