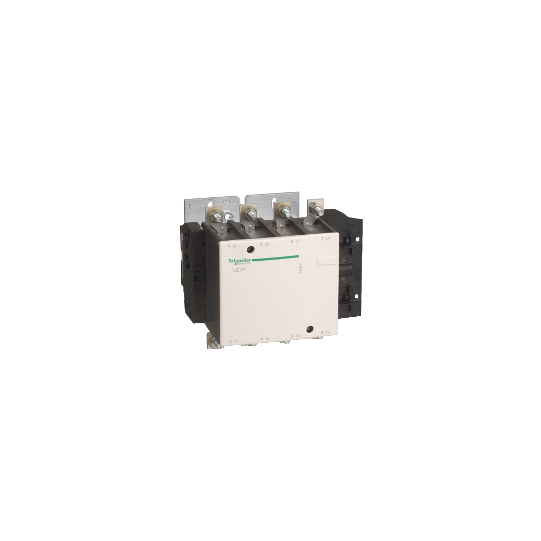

TeSys F contactor - 4P (4 NO) - AC-1 - <= 440 V 250 A - coil 230 V AC - LC1F1504P7
DESCRIPTION
| Range of product: | TeSys F |
|---|---|
| Range: | TeSys |
| Product name: | TeSys F |
| Product or component type: | Contactor |
| Device short name: | LC1F |
| Contactor application: | Resistive load |
| Utilisation category: | AC-1 |
| Poles description: | 4P |
| Pole contact composition: | 4 NO |
| [Ue] rated operational voltage: | |
| [Ie] rated operational current: | 250 A (at |
| Control circuit type: | AC at 40...400 Hz |
| [Uc] control circuit voltage: | 230 V AC 40...400 Hz |
| [Uimp] rated impulse withstand voltage: | 8 kV |
|---|---|
| Overvoltage category: | III |
| [Ith] conventional free air thermal current: | 250 A (at 40 °C) |
| Rated breaking capacity: | 1200 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current: | 1200 A 40 °C - 10 s700 A 40 °C - 30 s600 A 40 °C - 1 min450 A 40 °C - 3 min350 A 40 °C - 10 min |
| Associated fuse rating: | 160 A aM at 250 A gG at |
| Average impedance: | 0.35 mOhm - Ith 250 A 50 Hz |
| [Ui] rated insulation voltage: | 1000 V conforming to IEC 60947-4-11500 V conforming to VDE 0110 group C |
| Power dissipation per pole: | 22 W AC-1 |
| Mounting support: | Plate |
| Standards: | IEC 60947-4-1IEC 60947-1EN 60947-1EN 60947-4-1JIS C8201-4-1 |
| Product certifications: | LROS (Lloyds register of shipping)RMRoSCCCDNVCBRINAULABSBVUKCA |
| Connections - terminals: | Control circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²solid without cable endPower circuit: bar 2 cable(s) - busbar cross section: 25 x 3 mmPower circuit: lugs-ring terminals 1 cable(s) 120 mm²Power circuit: connector 1 cable(s) 120 mm²Power circuit: bolted connection |
| Tightening torque: | Control circuit: 1.2 N.mPower circuit: 18 N.m |
| Control circuit voltage limits: | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)Drop-out: 0.35...0.55 Uc 40...400 Hz (at 55 °C) |
| Inrush power in VA: | 770 VA 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA: | 8.1 VA 40...400 Hz cos phi 0.9 (at 20 °C) |
| Heat dissipation: | 5.9...7.2 W |
| Operating time: | 35 ms closing (at Uc) 130 ms opening (at Uc) |
| Mechanical durability: | 10 Mcycles |
| Maximum operating rate: | 2400 cyc/h 55 °C |
| Compatibility code: | LC1F |
| IP degree of protection: | IP2x front face with shrouds conforming to IEC 60529IP2x front face with shrouds conforming to VDE 0106 |
|---|---|
| Protective treatment: | TH |
| Ambient air temperature for operation: | -40...60 °C |
| Ambient air temperature for storage: | -60...80 °C |
| Permissible ambient air temperature around the device: | 60...70 °C at Uc |
| Operating altitude: | 3000 m without derating |
| Height: | 170 mm |
| Width: | 200.5 mm |
| Depth: | 171 mm |
| Product weight: | 3.83 kg |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389118093911 |
|---|---|
| Substitution_texte: | Product not available. Here is the equivalent reference that we offer : High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 275A, standard version, 100…250V wide band AC/DC coil - LC1G1504KUEN |
