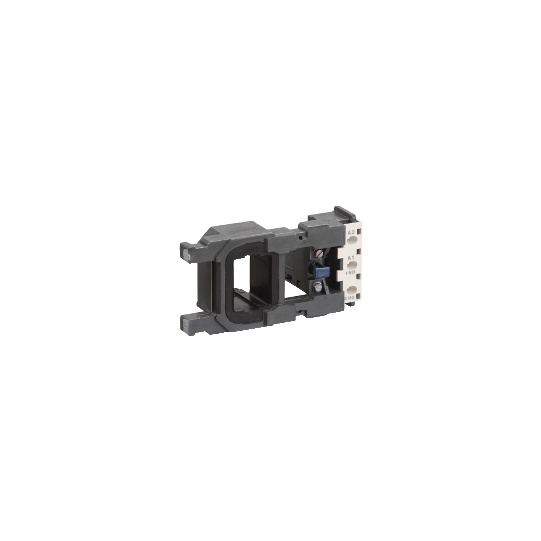

TeSys F - contactor coil - LX1FG - 440V AC 60 Hz - LX1FG360
DESCRIPTION
| Range of product: | TeSys F |
|---|---|
| Range: | TeSys |
| Product or component type: | Contactor coil |
| Device short name: | LX1FG |
| Range compatibility: | TeSys (TeSys F) LC1F contactor |
| Product compatibility: | LC1F225LC1F185 |
| Control circuit type: | AC at 60 Hz |
| [Uc] control circuit voltage: | 440 V AC 60 Hz |
| Inductance of closed circuit: | 6.94 H |
| Average resistance: | 43.5 Ohm at 20 °C |
| Operating time: | 20...35 ms closing7...15 ms opening |
| Mechanical durability: | 10 Mcycles |
| Maximum operating rate: | 2400 cyc/h 55 °C |
| Coil technology: | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits: | Drop-out: 0.35...0.55 Uc 50/60 Hz (at 55 °C)Operational: 0.85...1.1 Uc 50/60 Hz (at 55 °C) |
| Inrush power in VA: | 970 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Hold-in power consumption in VA: | 66 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation: | 18...24 W at 60 Hz |
| Ambient air temperature for operation: | -5...55 °C |
|---|---|
| Net weight: | 0.55 kg |
| REACh free of SVHC: | YesEU RoHS Directive |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110083194 |
|---|
