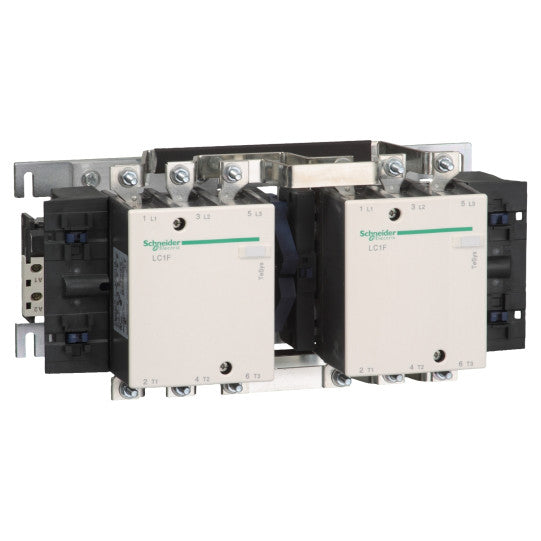

TeSys F reversing contactor - 3P(3 NO) AC-3 <= 440 V 115 A - without coil - LC2F115
SKU : LC2F115
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys F reversing contactor - 3P(3 NO) AC-3 <= 440 V 115 A - without coil - LC2F115
DESCRIPTION
| Range of product: | TeSys F |
|---|---|
| Range: | TeSys |
| Product name: | TeSys F |
| Product or component type: | Reversing contactor |
| Device short name: | LC2F |
| Contactor application: | Motor controlResistive load |
| Utilisation category: | AC-1AC-3 |
| Device presentation: | Preassembled with reversing power busbar |
| Poles description: | 3P |
| Pole contact composition: | 3 NO |
| [Ue] rated operational voltage: | |
| [Ie] rated operational current: | 200 A (at 115 A (at |
| Motor power kW: | 55 kW at 380...400 V AC 50/60 Hz59 kW at 415 V AC 50/60 Hz59 kW at 440 V AC 50/60 Hz65 kW at 1000 V AC 50/60 Hz75 kW at 500 V AC 50/60 Hz30 kW at 220...240 V AC 50/60 Hz80 kW at 660...690 V AC 50/60 Hz |
| Auxiliary contact composition: | 1 NO |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| Overvoltage category: | III |
| [Ith] conventional free air thermal current: | 200 A (at 40 °C) |
| Irms rated making capacity: | 1150 A AC conforming to IEC 60947-4-1 |
| Rated breaking capacity: | 920 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current: | 1100 A 40 °C - 10 s640 A 40 °C - 30 s520 A 40 °C - 1 min400 A 40 °C - 3 min320 A 40 °C - 10 min |
| Associated fuse rating: | 125 A aM at 200 A gG at |
| Average impedance: | 0.37 mOhm - Ith 200 A 50 Hz |
| [Ui] rated insulation voltage: | 1000 V conforming to IEC 60947-4-11500 V conforming to VDE 0110 group C |
| Power dissipation per pole: | 5 W AC-3 |
| Interlocking type: | Mechanical |
| Mounting support: | Plate |
| Standards: | EN 60947-4-1IEC 60947-4-1JIS C8201-4-1EN 60947-1IEC 60947-1 |
| Product certifications: | RMRoSCCCULRINALROS (Lloyds register of shipping)CBDNVCSAABSUKCA |
| Connections - terminals: | Power circuit: connector 1 cable(s) 95 mm²Power circuit: lugs-ring terminals 1 cable(s) 95 mm²Control circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1...4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1...4 mm²solid without cable endPower circuit: bar 2 cable(s) - busbar cross section: 20 x 3 mm |
| Tightening torque: | Power circuit: 10 N.mControl circuit: 1.2 N.m |
| Compatibility code: | LC2F |
|---|
| IP degree of protection: | IP2x front face with shrouds conforming to IEC 60529IP2x front face with shrouds conforming to VDE 0106 |
|---|---|
| Protective treatment: | TH |
| Ambient air temperature for operation: | -5...55 °C |
| Ambient air temperature for storage: | -60...80 °C |
| Permissible ambient air temperature around the device: | -40...70 °C |
| Operating altitude: | 3000 m without derating |
| Fire resistance: | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness: | Vibrations contactor open: 2 Gn, 5...300 HzVibrations contactor closed: 6 Gn, 5...300 HzShocks contactor open: 9 Gn for 11 msShocks contactor closed: 15 Gn for 11 ms |
| Height: | 162 mm |
| Width: | 345 mm |
| Depth: | 171 mm |
| Product weight: | 7.56 kg |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110227369 |
|---|
