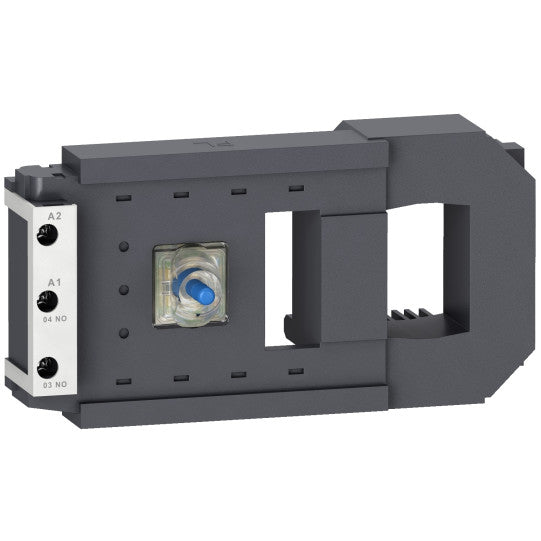

TeSys F - specific contactor coil - 220...230 V AC 40...400 Hz low consumption - LX9FF220
SKU : LX9FF220
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys F - specific contactor coil - 220...230 V AC 40...400 Hz low consumption - LX9FF220
DESCRIPTION
| Range of product: | TeSys F |
|---|---|
| Range: | TeSys |
| Product or component type: | Specific contactor coil |
| Device short name: | LX9FF |
| Range compatibility: | TeSys F LC1F contactor |
| Product compatibility: | LC1F115LC1F150 |
| Control circuit type: | AC at 40...400 Hz low consumption |
| [Uc] control circuit voltage: | 220...230 V AC 40...400 Hz |
| Average resistance: | 59.4 Ohm inrush at 20 °C2190 Ohm holding at 20 °C |
| Inductance of closed circuit: | 7.7 H |
| Operating time: | 130 ms opening35 ms closing |
| Mechanical durability: | 10 Mcycles |
| Maximum operating rate: | 2400 cyc/h 55 °C |
| Coil technology: | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits: | Operational: 0.85...1.1 Uc (at 55 °C)Drop-out: 0.35...0.55 Uc (at 55 °C) |
| Inrush power in VA: | 690...855 VA 40...400 Hz (at 20 °C) |
| Hold-in power consumption in VA: | 6.6...8.1 VA 40...400 Hz (at 20 °C) |
| Heat dissipation: | 5.9...7.2 W |
| Ambient air temperature for operation: | -5...55 °C |
|---|---|
| Product weight: | 0.43 kg |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110083941 |
|---|
