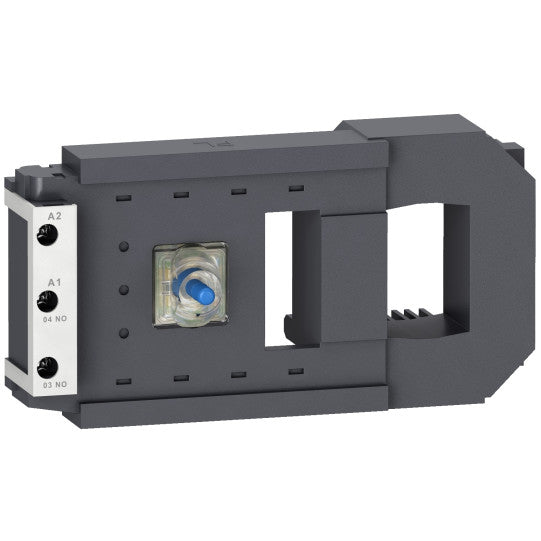

TeSys F - specific contactor coil - 380...400V AC 40...400 Hz low consumption - LX9FG380
DESCRIPTION
| Range of product: | TeSys F |
|---|---|
| Range: | TeSys |
| Product or component type: | Specific contactor coil |
| Device short name: | LX9FG |
| Range compatibility: | TeSys F LC1F contactor |
| Product compatibility: | LC1F185LC1F225 |
| Control circuit type: | AC at 40...400 Hz low consumption |
| [Uc] control circuit voltage: | 380 V AC 40...400 Hz |
| Average resistance: | 128 Ohm inrush at 20 °C4730 Ohm holding at 20 °C |
| Inductance of closed circuit: | 16.4 H |
| Operating time: | 130 ms opening35 ms closing |
| Mechanical durability: | 10 Mcycles |
| Maximum operating rate: | 2400 cyc/h 55 °C |
| Coil technology: | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits: | Operational: 0.85...1.1 Uc (at 55 °C)Drop-out: 0.35...0.55 Uc (at 55 °C) |
| Inrush power in VA: | 950...1180 VA 40...400 Hz (at 20 °C) |
| Hold-in power consumption in VA: | 8.9...10.9 VA 40...400 Hz (at 20 °C) |
| Heat dissipation: | 8...9.8 W |
| Ambient air temperature for operation: | -5...55 °C |
|---|---|
| Product weight: | 0.55 kg |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110248456 |
|---|
