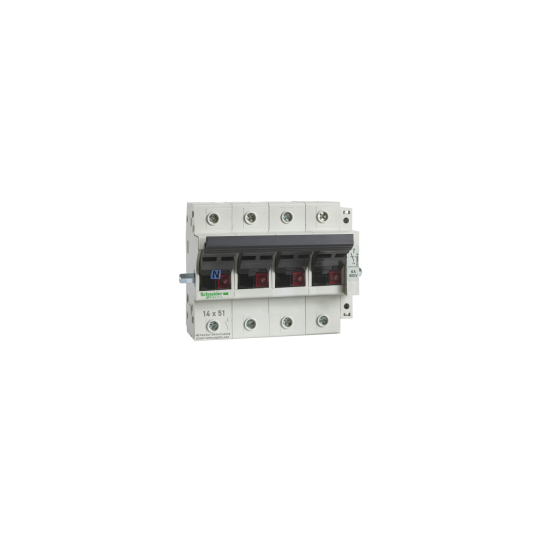

TeSys fuse-disconnector - 4P - 50A - fuse size 14 x 51 mm - GK1ET
SKU : GK1ET
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys fuse-disconnector - 4P - 50A - fuse size 14 x 51 mm - GK1ET
DESCRIPTION
| Range of product: | TeSys fuse-disconnector |
|---|---|
| Range: | TeSys |
| Product name: | TeSys GK1 |
| Product or component type: | Fuse-disconnector |
| Device short name: | GK1 E |
| Poles description: | 3P + N |
| Product compatibility: | Fuse cartridge |
|---|---|
| Mounting support: | Rail |
| Mounting position: | Vertical (tolerance: +/- 23°) |
| Control type: | Toggle |
| [Ue] rated operational voltage: | Power circuit: 690 V ACSignalling circuit: 500 V ACSignalling circuit: 440 V DC |
| [Ie] rated operational current: | 50 A for power circuit6 A for signalling circuit |
| Contacts type and composition: | 2 NO early-break |
| Fuse size: | 14 x 51 mm |
| Fuse type: | AMGG |
| Connections - terminals: | Power circuit: connector 1 cable(s) 2.5...25 mm²solidPower circuit: connector 1 cable(s) 2.5...25 mm²flexible without cable endPower circuit: connector 1 cable(s) 2.5...16 mm²flexible with cable end |
| Tightening torque: | 2 N.m power circuit: on connector |
| Compatibility code: | GK1 E |
| Standards: | IEC 60947-3 |
|---|---|
| IP degree of protection: | IP20 |
| Protective treatment: | TC |
| Ambient air temperature for operation: | -50...70 °C |
| Height: | 97 mm |
| Width: | 123 mm |
| Depth: | 89.5 mm |
| Product weight: | 0.61 kg |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3389110256604 |
|---|---|
| Substitution_texte: | Obsolete product, here is the equivalent reference that we offer: DF143NC - Fuse carrier TeSys DF, 3P+N 50A, fuse size 14x51 mm |
