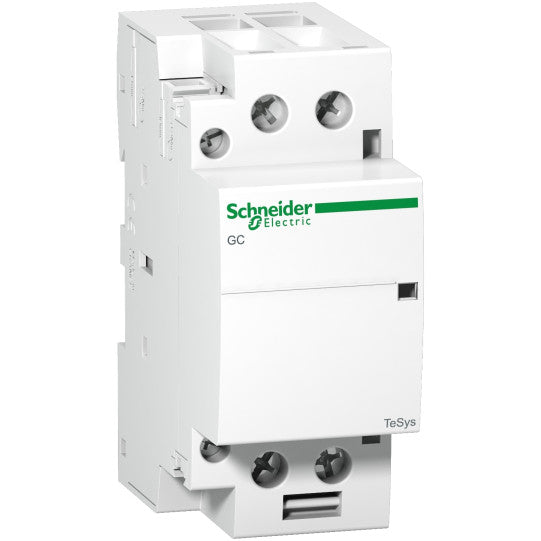

TeSys GC - modular contactor - 40 A - 2 NO - coil 220...240 V AC - GC4020M5
SKU : GC4020M5
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys GC - modular contactor - 40 A - 2 NO - coil 220...240 V AC - GC4020M5
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys GC |
| Product or component type: | Modular contactor |
| Device short name: | GC40 |
| Contactor application: | LightingHeatingMotor control |
| Utilisation category: | AC-7BAC-7A |
|---|---|
| Poles description: | 2P |
| Pole contact composition: | 2 NO |
| [Ue] rated operational voltage: | |
| [Ie] rated operational current: | 40 A AC-7A15 A AC-7B |
| Operating position: | 30°/vertical |
| Control circuit type: | AC at 50 Hz |
| [Uc] control circuit voltage: | 220...240 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| [Ith] conventional free air thermal current: | 40 A (at 50 °C) for power circuit |
| Irms rated making capacity: | 120 A at 400 V AC for power circuit conforming to IEC 61095 |
| Rated breaking capacity: | 120 A at 400 V for power circuit conforming to IEC 61095 |
| [Icw] rated short-time withstand current: | 320 A 40 °C - 10 s for power circuit100 A 40 °C - 30 s for power circuit |
| Associated fuse rating: | 40 A gL at |
| Average impedance: | 2 mOhm - Ith 40 A 50 Hz for power circuit |
| [Ui] rated insulation voltage: | 500 V conforming to IEC 61095500 V conforming to VDE 0110 |
| Electrical durability: | AC-7A: 100000 cyclesAC-7B: 100000 cycles |
| Power dissipation per pole: | 3.2 W |
| Control type: | Remote control |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Standards: | IEC 61095IEC 60947-5 |
| Connections - terminals: | Control circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 2.5 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1.5 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1.5 mm²solid without cable endPower circuit: screw clamp terminals 1 cable(s) 25 mm²flexible without cable endPower circuit: screw clamp terminals 2 cable(s) 16 mm²flexible without cable endPower circuit: screw clamp terminals 1 cable(s) 16 mm²flexible with cable endPower circuit: screw clamp terminals 2 cable(s) 4 mm²flexible with cable endPower circuit: screw clamp terminals 1 cable(s) 25 mm²solid without cable endPower circuit: screw clamp terminals 2 cable(s) 6 mm²solid without cable end |
| Tightening torque: | Control circuit: 0.8 N.m - on screw clamp terminalsPower circuit: 2 N.m - on screw clamp terminals |
| Operating time: | 10...25 ms opening10...30 ms closing |
| Mechanical durability: | 1000000 cycles |
| Maximum operating rate: | 300 cyc/h 50 °C |
| Control circuit voltage limits: | Drop-out: 0.2...0.75 Uc at 50 Hz (at Operational: 0.85...1.1 Uc at 50 Hz (at |
| Inrush power in VA: | 34 VA 50 Hz (at 20 °C) |
| Hold-in power consumption in VA: | 4.6 VA 50 Hz (at 20 °C) |
| Heat dissipation: | 1.6 W at 50/60 Hz |
| Compatibility code: | Modular standard contactor |
| IP degree of protection: | IP40 conforming to VDE 0106 (in enclosure)IP20 conforming to VDE 0106 |
|---|---|
| Protective treatment: | TC |
| Ambient air temperature for operation: | -5...50 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Operating altitude: | |
| Mechanical robustness: | Shocks contactor open: 10 Gn for 11 msShocks contactor closed: 15 Gn for 11 msVibrations contactor open: 2 Gn, 5...300 HzVibrations contactor closed: 3 Gn, 5...300 Hz |
| Total number of 18 mm modules: | 2 |
| Height: | 85 mm |
| Width: | 36 mm |
| Depth: | 62.5 mm |
| Product weight: | 0.23 kg |
| Quantity per set: | Set of 6 |
| Colour: | White |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110641677 |
|---|
