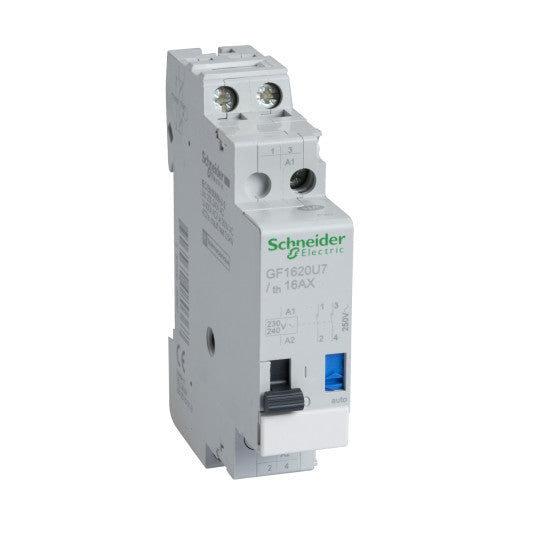

TeSys GF - impulse relay - 16 A - 2 NO - 230...240 V AC 50/60 Hz coil - GF1620U7
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys GF |
| Product or component type: | Impulse relay |
| Device short name: | GF16 |
| Utilisation category: | AC-1 |
| Poles description: | 2P |
| Pole contact composition: | 2 NO |
| [Ie] rated operational current: | 16 A AC-1 |
| [Ue] rated operational voltage: | 250 V AC 50/60 Hz |
| Permissible short-time rating: | 320 A 40 °C 1 s48 A 40 °C 30 s96 A 40 °C 10 s |
| Operating position: | +/- 90° to vertical plane |
| Control circuit type: | AC at 50/60 Hz |
| [Uc] control circuit voltage: | 230...240 V AC 50/60 Hz |
| Mounting mode: | Clip-on |
| Mounting support: | 35 mm symmetrical DIN rail |
| [Ith] conventional free air thermal current: | 16 A (at 50 °C) |
|---|---|
| Average impedance: | 4 mOhm at 50 Hz - Ith 16 A |
| [Ui] rated insulation voltage: | 400 V conforming to IEC 60947-5-1400 V conforming to VDE 0110 |
| [Uimp] rated impulse withstand voltage: | 4 kV in enclosure |
| Connections - terminals: | Control circuit: screw clamp terminals 1 cable(s) 1.5 mm² solid without cable endControl circuit: screw clamp terminals 1 cable(s) 2.5 mm² flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 2.5 mm² flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1.5 mm² flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1.5 mm² solid without cable endControl circuit: screw clamp terminals 2 cable(s) 2.5 mm² flexible without cable endPower circuit: screw clamp terminals 1 cable(s) 0.5...6 mm² flexible with cable endPower circuit: screw clamp terminals 1 cable(s) 0.5...6 mm² flexible without cable endPower circuit: screw clamp terminals 1 cable(s) 0.5...6 mm² solid without cable endPower circuit: screw clamp terminals 2 cable(s) 0.5...4 mm² flexible with cable endPower circuit: screw clamp terminals 2 cable(s) 0.5...4 mm² flexible without cable endPower circuit: screw clamp terminals 2 cable(s) 0.5...4 mm² solid without cable end |
| Tightening torque: | Control circuit: 0.8 N.m - on screw clamp terminalsPower circuit: 0.8 N.m - on screw clamp terminals |
| Operating time: | 70 ms closing70 ms opening |
| Maximum operating rate: | 900 cyc/h |
| Control circuit voltage limits: | 0.85...1.1 Uc 50 °C 50/60 Hz |
| Impulse duration: | >= 70 ms |
| Average consumption: | 19 VA AC 50 Hz at at Uc at 20 ºC |
| Power dissipation per pole: | 1 W |
| Mechanical durability: | 1 Mcycles |
| Electrical durability: | 100000 cycles AC-22200000 cycles AC-21 |
| 9 mm pitches: | 2 |
| Height: | 81 mm |
| Width: | 18 mm |
| Depth: | 64 mm |
| Product weight: | 0.11 kg |
| Quantity per set: | Set of 12 |
| Compatibility code: | Modular impulse relay |
| Standards: | NF C 61-112IEC 60669-2IEC 60669-1 |
|---|---|
| IP degree of protection: | IP40 conforming to VDE 0106 (in enclosure)IP20 conforming to VDE 0106 |
| Protective treatment: | TC |
| Ambient air temperature for operation: | -20...50 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Operating altitude: | |
| Mechanical robustness: | Vibrations contactor open: 4 Gn, 5...300 HzVibrations contactor closed: 4 Gn, 5...300 Hz |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110707823 |
|---|
