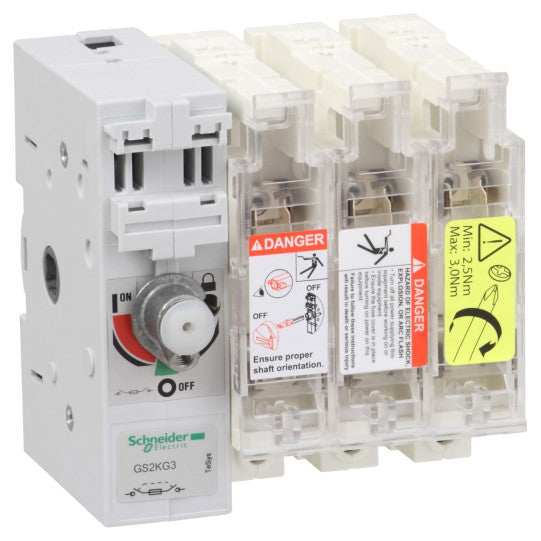

TeSys GS - switch-disconnector-fuse - 3 P - 125A - NFC 22 x 58 mm - GS2KG3
SKU : GS2KG3
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys GS - switch-disconnector-fuse - 3 P - 125A - NFC 22 x 58 mm - GS2KG3
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys GS |
| Device short name: | GS2K |
| Product or component type: | Switch-disconnector-fuse |
| Poles description: | 3P |
| Protected poles description: | 3t |
| Contacts type and composition: | 3 NO |
| [Ith] conventional free air thermal current: | 125 A (at 40 °C) |
| [Ie] rated operational current: | 100 A at 440 V 2 poles in series per phase DC-23A100 A at 440 V 2 poles in series per phase DC-23B100 A at 690 V AC-23A100 A at 690 V AC-23B125 A at 400 V AC-23A125 A at 400 V AC-23B125 A at 500 V AC-23A125 A at 500 V AC-23B |
| Fuse type: | NFC |
| Fuse size: | 22 x 58 mm |
| Network type: | ACDC |
| Network frequency: | 50/60 Hz |
| Type of operating handle: | External left side |
|---|---|
| Mounting support: | Plate |
| [Ui] rated insulation voltage: | 750 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| Rated operational power in W: | 63 kW at 400 V90 kW at 500 V80 kW at 690 V |
| Making capacity: | 1000 A at 400 V AC-23B |
| [Icm] rated short-circuit making capacity: | 100 kA at 400 V with protection by gG fuses |
| Breaking capacity: | 10000 A at 400 V (AC-23B) |
| Short-circuit withstand: | 20 kA |
| Mechanical durability: | 10000 cycles |
| Electrical durability: | 1000 cycles AC-23A1000 cycles DC-23A200 cycles AC-23B200 cycles DC-23B |
| Connections - terminals: | Power circuit: bars20 mm²Power circuit: lugs-ring terminals35...95 mm² |
| Tightening torque: | Power circuit: 12 N.m |
| Compatibility code: | GS2K |
| Standards: | IEC 60947-3 |
|---|---|
| Product certifications: | CE |
| IP degree of protection: | IP20 conforming to IEC 60529 (with terminal cover) |
| Ambient air temperature for operation: | -20...70 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Fire resistance: | 850 °C fuse cover conforming to IEC 60695-2-1960 °C body conforming to IEC 60695-2-1 |
| Height: | 162 mm |
| Width: | 148 mm |
| Depth: | 116 mm |
| Product weight: | 1.5 kg |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119410915 |
|---|
