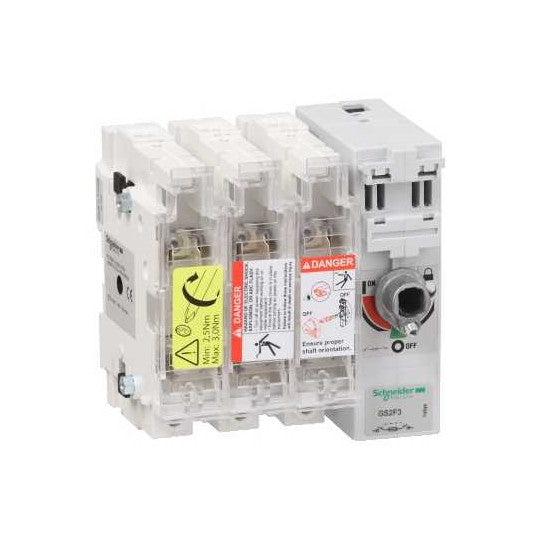

TeSys GS - switch-disconnector-fuse - 3 P - 50A - NFC 14 x 51 mm - GS2F3
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys GS |
| Device short name: | GS2F |
| Product or component type: | Switch-disconnector-fuse |
| Poles description: | 3P |
| Protected poles description: | 3t |
| Contacts type and composition: | 3 NO |
| [Ith] conventional free air thermal current: | 50 A (at 40 °C) |
| [Ie] rated operational current: | 40 A at 440 V 2 poles in series per phase DC-23A40 A at 440 V 2 poles in series per phase DC-23B50 A at 400 V AC-23A50 A at 400 V AC-23B50 A at 500 V AC-23A50 A at 500 V AC-23B50 A at 690 V AC-23A50 A at 690 V AC-23B |
| Fuse type: | NFC |
| Fuse size: | 14 x 51 mm |
| Network type: | ACDC |
| Network frequency: | 50/60 Hz |
| Type of operating handle: | External frontalExternal right side |
|---|---|
| Mounting support: | Plate |
| [Ui] rated insulation voltage: | 750 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| Rated operational power in W: | 25 kW at 400 V45 kW at 690 V33 kW at 500 V |
| Making capacity: | 500 A at 400 V AC-23B |
| [Icm] rated short-circuit making capacity: | 100 kA at 400 V with protection by gG fuses |
| Breaking capacity: | 400 A at 400 V (AC-23B) |
| Short-circuit withstand: | 10.6 kA |
| Mechanical durability: | 10000 cycles |
| Electrical durability: | 1500 cycles AC-23A1500 cycles DC-23A300 cycles AC-23B300 cycles DC-23B |
| Connections - terminals: | Power circuit: lugs-ring terminals6...25 mm² |
| Tightening torque: | Power circuit: 3.2 N.m |
| Compatibility code: | GS2F |
| Standards: | IEC 60947-3 |
|---|---|
| Product certifications: | CE |
| IP degree of protection: | IP20 conforming to IEC 60529 (with terminal cover) |
| Ambient air temperature for operation: | -20...70 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Fire resistance: | 850 °C fuse cover conforming to IEC 60695-2-1960 °C body conforming to IEC 60695-2-1 |
| Height: | 118 mm |
| Width: | 121 mm |
| Depth: | 87 mm |
| Product weight: | 0.8 kg |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119410663 |
|---|
