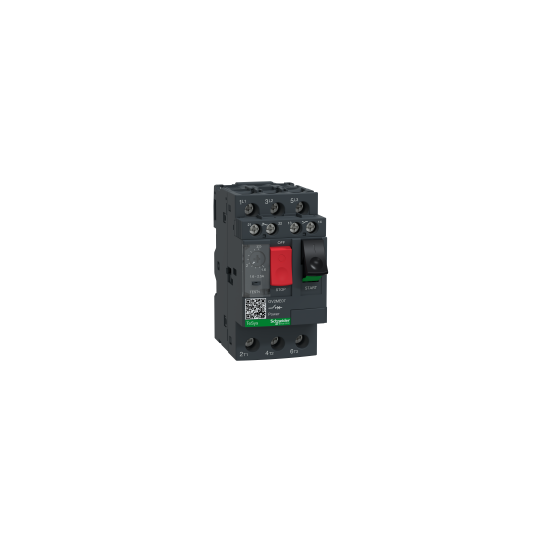

TeSys GV motor circuit breaker, 0.63A/690V.1, 6-2.5 plus ADD - GV2ME07AE11TQ
DESCRIPTION
| Range: | TeSys Deca |
|---|---|
| Range of product: | TeSys GV2TeSys Deca |
| Product name: | TeSys Deca |
| Product or component type: | Circuit breaker |
| Device short name: | GV2ME |
| Device application: | Motor |
| Poles description: | 3P |
| Network type: | AC |
| Control type: | Push-button |
| Motor power kW: | 0.75 kW at 400/415 V AC 50/60 Hz1.1 kW at 500 V AC 50/60 Hz1.5 kW at 690 V AC 50/60 Hz |
| [In] rated current: | 2.5 A |
| Magnetic tripping current: | 33.5 A |
| Thermal protection adjustment range: | 1.6...2.5 A conforming to IEC 60947-4-1 |
| Suitability for isolation: | Yes conforming to IEC 60947-1 § 7-1-6 |
| Utilisation category: | AC-3 conforming to IEC 60947-4-1Category A conforming to IEC 60947-2 |
| Connections - terminals: | Power circuit: screw clamp terminal 2 cable(s) 1...4 mm²flexible with cable endPower circuit: screw clamp terminal 2 cable(s) 1...6 mm²solidPower circuit: screw clamp terminal 2 cable(s) 1.5...6 mm²flexible without cable end |
| Quantity per set: | Set of 20 |
| Network frequency: | 50/60 Hz |
|---|---|
| Mounting mode: | Fixed |
| Mounting support: | PlateRail |
| Mounting position: | VerticalHorizontal |
| Auxiliary contact composition: | 1 NO + 1 NC front |
| Trip unit technology: | Thermal-magnetic |
| Phase failure sensitivity: | Yes conforming to IEC 60947-4-1 § 7-2-1-5-2 |
| [Ue] rated operational voltage: | 600 V AC 50/60 Hz conforming to UL 508690 V AC 50/60 Hz conforming to IEC 60947-2600 V AC 50/60 Hz conforming to CSA C22.2 No 14 |
| [Ui] rated insulation voltage: | 600 V AC 50/60 Hz conforming to UL 508690 V AC 50/60 Hz conforming to IEC 60947-2600 V AC 50/60 Hz conforming to CSA C22.2 No 14 |
| [Ith] conventional free air thermal current: | 2.5 A conforming to IEC 60947-4-1 |
| Network frequency: | 50/60 Hz conforming to CSA50/60 Hz conforming to UL50/60 Hz conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-2 |
| Power dissipation per pole: | 2.5 W |
| Mechanical durability: | 100000 cycles |
| Electrical durability: | 100000 cycles for AC-3 at 440 V In100000 cycles for AC-3 at 440 V In/2 |
| Maximum number of switchings: | 25 cyc/h |
| Rated duty: | Continuous conforming to IEC 60947-4-1 |
| Tightening torque: | 1.7 N.m - on screw clamp terminal - cable 1...4 mm²1.7 N.m - on screw clamp terminal - cable 1...6 mm²1.7 N.m - on screw clamp terminal - cable 1.5...6 mm² |
| Breaking capacity: | Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity: | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2100 % at 500 V AC 50/60 Hz conforming to IEC 60947-275 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Height: | 89 mm |
| Width: | 44.5 mm |
| Depth: | 78.2 mm |
| Product weight: | 0.26 kg |
| Standards: | EN 60204NF C 79-130NF C 63-120IEC 60947-1NF C 63-650UL 508IEC 60947-4-1VDE 0660VDE 0113CSA C22.2 No 14-05IEC 60947-2 |
|---|---|
| Product certifications: | ATEXCSAULBVLROS (Lloyds register of shipping)DNVCEBECPTBGOSTSETIRINACCCGLTSEEZUUKCA |
| Protective treatment: | TH |
| IP degree of protection: | IP20 conforming to IEC 60529 (open mounted) |
| Shock resistance: | 30 gn conforming to IEC 60068-2-27 |
| Vibration resistance: | 5 gn (f= 5...150 Hz) conforming to IEC 60068-2-6 |
| Ambient air temperature for operation: | -20...40 °C in enclosure-20...60 °C open mounted |
| Ambient air temperature for storage: | -40...80 °C |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| Operating altitude: | |
| Resistance to mechanical impact: | 0.5 J |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110823158 |
|---|
