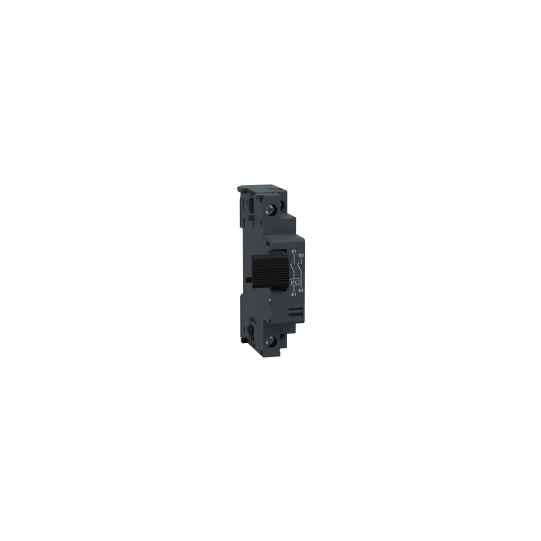

TeSys GV2 - safety undervoltage trip - 380...400V AC 50Hz - GVAX385
SKU : GVAX385
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys GV2 - safety undervoltage trip - 380...400V AC 50Hz - GVAX385
DESCRIPTION
| Range of product: | TeSys GV2TeSys Deca |
|---|---|
| Range: | TeSysTeSys Deca |
| Device short name: | GVAX |
| Product or component type: | Safety undervoltage trip |
| Range compatibility: | GV2METeSys Deca |
|---|---|
| [Uc] control circuit voltage: | 380...400 V AC 50 Hz440 V AC 60 Hz |
| Control circuit voltage limits: | 0.85...1.1 Un |
| [Ui] rated insulation voltage: | 690 V AC conforming to IEC 60947-1600 V AC conforming to UL 60947-4-1600 V AC conforming to CSA C22.2 No 60947-4-1 |
| Threshold tripping voltage: | 0.7...0.35 Un |
| Inrush power in VA: | 12 VA AC |
| Inrush power in W: | 8 W |
| Hold-in power consumption in VA: | 3.5 VA AC |
| Hold-in power consumption in W: | 1.1 W |
| Operating time: | 10...15 ms conforming to IEC 60947-1 |
| On-load factor: | 100 % |
| Connections - terminals: | Screw clamp terminals 1 cable(s) 1...2.5 mm²solidScrew clamp terminals 2 cable(s) 1...2.5 mm²solidScrew clamp terminals 1 cable(s) 0.75...2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 0.75...2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 0.75...1.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 0.75...1.5 mm²flexible with cable end |
| Tightening torque: | < 1.4 N.m on screw clamp terminals |
| Mechanical durability: | 30000 cycles |
| Height: | 89 mm |
| Width: | 18 mm |
| Depth: | 66 mm |
| Product weight: | 0.105 kg |
| Colour: | Dark grey |
| Compatibility code: | GVAX |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Compliant |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | X |
| Environmental Disclosure: | ENVPEP111252EN |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Code EAN: | 3389110346312 |
|---|
