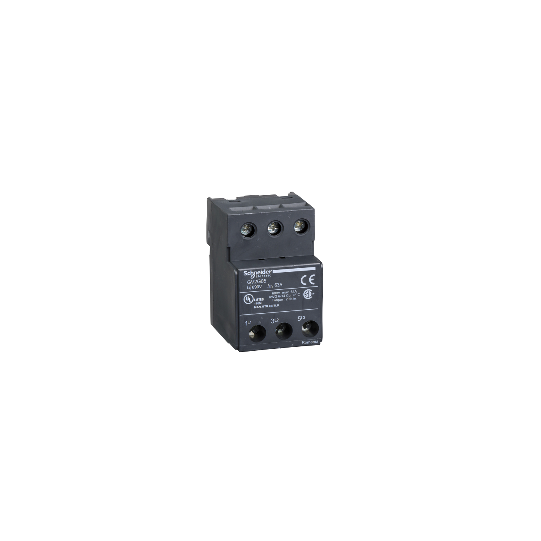

TeSys GV2, TeSys D & TeSys U - terminal block - 3P - for GV1L3 - GV2G05
DESCRIPTION
| Range of product: | TeSys DTeSys UTeSys KTeSys GV2 |
|---|---|
| Range: | Linergy |
| Product name: | FT |
| Device short name: | GV2G |
| Product or component type: | Terminal block |
| Accessory / separate part category: | Connection accessory |
| Poles description: | 3P |
| Range compatibility: | TeSys GV2TeSys DTeSys KTeSys U |
| [Ie] rated operational current: | 63 A |
|---|---|
| Mounting location: | 35 mm DIN rail |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| [Ui] rated insulation voltage: | 690 V conforming to IEC 60947-1 |
| Connections - terminals: | Screw clamp terminals 1 solid AWG 4Screw clamp terminals 1 cable(s) 1.5...16 mm² flexible with cable endScrew clamp terminals 1 cable(s) 1.5...16 mm² flexible without cable endScrew clamp terminals 1 cable(s) 1.5...25 mm² solidScrew clamp terminals 2 cable(s) 1.5...4 mm² flexible with cable endScrew clamp terminals 2 cable(s) 1.5...6 mm² solidScrew clamp terminals 2 cable(s) 2.5...4 mm² flexible without cable endScrew clamp terminals 1 flexible AWG 4 |
| Tightening torque: | 1.7 N.m - on screw clamp terminals2.2 N.m - on connector |
| Product weight: | 0.115 kg |
| Compatibility code: | GV2G |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Compliant |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | X |
| Environmental Disclosure: | ENVPEP111252EN |
| Code EAN: | 3389110512946 |
|---|
