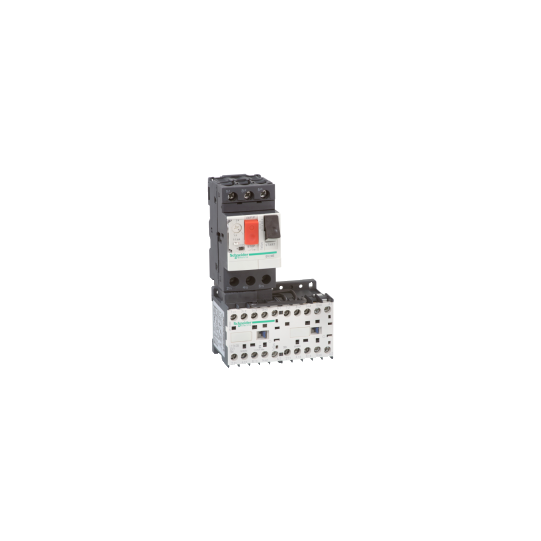

TeSys GV2ME - combined reversing starter- 1..1,6A - 24Vcc - GV2ME06K2BW3
SKU : GV2ME06K2BW3
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys GV2ME - combined reversing starter- 1..1,6A - 24Vcc - GV2ME06K2BW3
DESCRIPTION
| Range of product: | TeSys |
|---|---|
| Range: | TeSys |
| Device short name: | GV2ME |
| Product or component type: | Motor starter |
| Motor starter type: | Reversing |
| Poles description: | 3P |
| Utilisation category: | AC-3 |
| Motor power kW: | 0.37 kW at 400/415 V AC 50/60 Hz0.37 kW at 440 V AC 50/60 Hz0.55 kW at 400/415 V AC 50/60 Hz0.55 kW at 440 V AC 50/60 Hz0.37 kW at 500 V AC 50/60 Hz0.55 kW at 500 V AC 50/60 Hz0.75 kW at 500 V AC 50/60 Hz |
| [Uc] control circuit voltage: | 24 V DC |
| Trip unit rating: | 1...1.6 A |
| Magnetic tripping current: | 22.5 A |
| Device composition: | 1 3-pole reversing contactor1 motor circuit breaker type GV2ME1 combination block GV2AF01 |
|---|---|
| Coordination type: | Type 1 |
| Breaking capacity: | 50 kA Iq at 400/415 V AC 50/60 Hz conforming to IEC 60947-4-150 kA Iq at 440 V AC 50/60 Hz conforming to IEC 60947-4-150 kA Iq at 500 V AC 50/60 Hz conforming to IEC 60947-4-1 |
| Product weight: | 0.46 kg |
| Height: | 152 mm |
| Width: | 45 mm |
| Depth: | 87 mm |
| Compatibility code: | GV2ME |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| EU RoHS Directive: | Compliant |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP121004EN |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Code EAN: | 3389110953558 |
|---|
