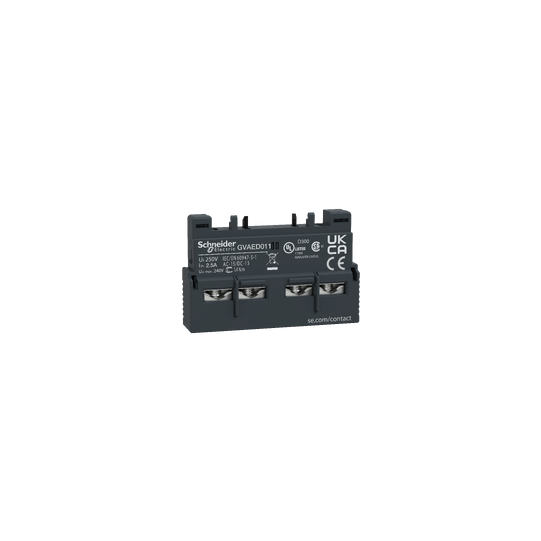

TeSys GV3 - auxiliary contact block - 1 NO + 1 NC - GVAED011
SKU : GVAED011
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys GV3 - auxiliary contact block - 1 NO + 1 NC - GVAED011
DESCRIPTION
| Range of product: | TeSys GV3TeSys Deca |
|---|---|
| Range: | TeSysTeSys Deca |
| Device short name: | GVAED |
| Product or component type: | Auxiliary contact block |
| Product compatibility: | GV3PGV3L |
| Mounting location: | Front side |
| Auxiliary contacts operation: | Fault signal 1 NO |
| Pole contact composition: | 1 NO + 1 NC |
| Quantity per set: | Set of 1 |
| [Ui] rated insulation voltage: | 600 V conforming to UL 508690 V conforming to IEC 60947-1600 V conforming to CSA C22.2 No 14 |
|---|---|
| [Ue] rated operational voltage: | 24...240 V AC24...60 V DC |
| [Ith] conventional free air thermal current: | 2.5 A |
| Protection type: | GB2CB... circuit breakerGG fuse 10 A |
| Mechanical durability: | 100000 cycles |
| Minimum switching current: | 5 mA |
| Minimum switching voltage: | 17 V |
| Rated operational power in VA: | 300 VA at 48 V AC-15 - electrical durability: 100000 cycles400 VA at 690 V AC-15 - electrical durability: 100000 cycles500 VA at 110...127 V AC-15 - electrical durability: 100000 cycles500 VA at 500 V AC-15 - electrical durability: 100000 cycles650 VA at 440 V AC-15 - electrical durability: 100000 cycles720 VA at 230...240 V AC-15 - electrical durability: 100000 cycles850 VA at 380...415 V AC-15 - electrical durability: 100000 cycles |
| Rated operational power in W: | 120 W at 240 V DC-13 - electrical durability: 100000 cycles140 W at 110 V DC-13 - electrical durability: 100000 cycles140 W at 24 V DC-13 - electrical durability: 100000 cycles180 W at 60 V DC-13 - electrical durability: 100000 cycles240 W at 48 V DC-13 - electrical durability: 100000 cycles |
| Tightening torque: | 1.4 N.m - on screw clamp terminals |
| Height: | 11 mm |
| Width: | 45 mm |
| Depth: | 29 mm |
| Product weight: | 0.05 kg |
| Compatibility code: | GVAED |
| Environmental characteristic: | Normal environment |
|---|---|
| Product certifications: | UKCA |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119405485 |
|---|
